Product Description

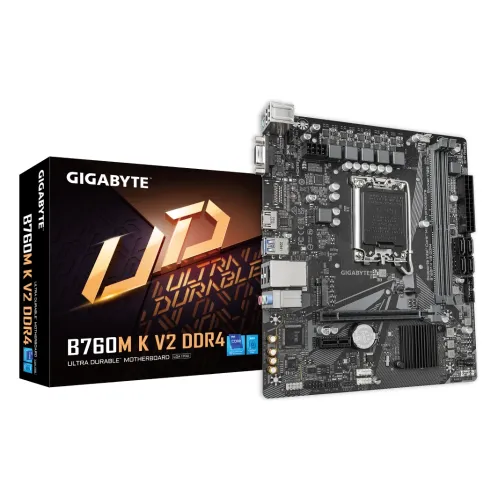

GIGABYTE B760M K V2 DDR4 mATX Motherboard
Unlock Unbridled Performance for Your Next-Gen PC
Designed for gaming, productivity, and everyday computing, the GIGABYTE B760M K V2 DDR4 Motherboard is the perfect choice for enthusiasts seeking a balance of performance, expandability, and durability. Built with the latest Intel B760 Express Chipset, this powerful motherboard ensures efficient system management and supports the 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Key Features and Benefits
- Supports up to 64GB of high-speed DDR4 memory, including XMP profiles for enhanced performance
- PCIe 4.0 x16 slot for graphics cards and PCIe 3.0 x1 slot for add-on cards
- Integrated Intel HD Graphics compatibility with HDMI 2.0 and D-Sub outputs supporting resolutions up to 4K@60Hz
- Robust connectivity with Realtek GbE LAN, USB 3.2 Gen 1, USB 2.0, and Realtek HD Audio CODEC supporting up to 7.1-channel sound
- Compact micro-ATX form factor with features like Q-Flash, GIGABYTE Control Center, tamper switch alarm, and RGB LED strip header
Exclusive GIGABYTE Technologies
The GIGABYTE B760M K V2 DDR4 Motherboard features several proprietary technologies, including:
AMI UEFI BIOS for efficient system management and seamless BIOS updates
Q-Flash for easy BIOS updates without a CPU or memory
GIGABYTE Control Center for monitoring and controlling system performance
Part ID: #CAN-00994
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M K V2 DDR4 mATX Motherboard
|
In Stock | 13,700 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 22.3cm x 19.3cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector
Memory
Type
DDR4
Slots
2
Supported Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 64GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI
1x HDMI
D-Sub (s)
1x D-Sub
USB (s)
Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported Storage
Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M K V2 DDR4
Supported CPU
14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM
2 x DDR4, Max 64GB 3200 Mhz
Graphics Output
1x HDMI, 1 x D-Sub
Features
Realtek GbE LAN chip
