Product Description

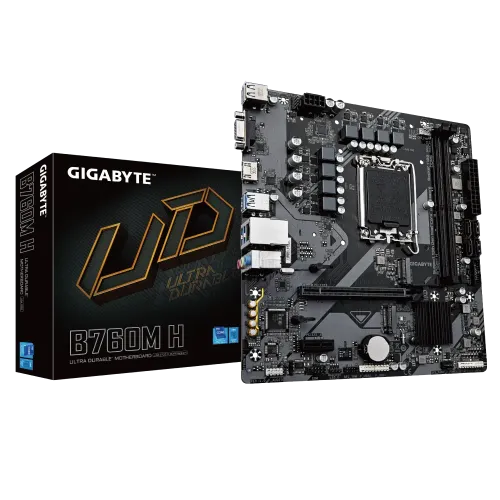

GIGABYTE B760M H DDR5 Micro ATX Motherboard: Unleash Your PC's Potential
The GIGABYTE B760M H DDR5 Micro ATX motherboard is designed for enthusiasts and mainstream users seeking a feature-rich platform for their computing needs. With its support for 14th, 13th, and 12th Gen Intel processors, this motherboard provides a future-proof foundation for gaming, content creation, and other demanding tasks.
Key Features and Performance Highlights
- Support for up to 128GB of DDR5 RAM with speeds up to 8000 MHz (O.C.)
- Flexible graphics output options via HDMI and D-Sub ports
- Realtek GbE LAN chip for reliable network connectivity at speeds up to 1 Gbps
- Two PCIe 4.0 x4 M.2 connectors for fast data transfer rates
- Smart Fan 6 system for efficient cooling management
Premium Technologies for Enhanced Performance
The GIGABYTE B760M H DDR5 Micro ATX motherboard features a range of innovative technologies designed to optimize performance and user experience. These include:
- A Hybrid 6+1+1 Phases Digital VRM Solution for stable power delivery
- Easy upgrades and installations with the EZ-Latch PCIe 4.0x16 Slot
- Multiple temperature sensors and hybrid fan headers for efficient cooling
- A fan stop feature for quieter operation
Part ID: #CAN-01268
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M H DDR5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Skyland BD
GIGABYTE B760M H DDR5 Micro ATX Motherboard
|
In Stock | 13,999 | 3 hours ago | |
|
Creatus Computer
GIGABYTE B760M H DDR5 Micro ATX Motherboard
|
In Stock | 14,099 | 4 hours ago | |
|
Computer Village
GIGABYTE B760M H DDR5 LGA1700 Micro ATX Motherboard
|
In Stock | 14,200 | 4 hours ago | |
|
Nexus Computer
GIGABYTE B760M H DDR5 M-ATX Motherboard
|
In Stock | 15,000 | 3 hours ago | |
|
TechLand BD
GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard
|
Check Stock | 14,100 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
2
Supported Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI
1x HDMI
D-Sub (s)
1 x D-Sub port
USB (s)
Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M H DDR5
Supported CPU
14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM
2 x DDR5, Max 128GB 8000(O.C.)
Graphics Output
1x HDMI, 1 x D-Sub
Features
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
