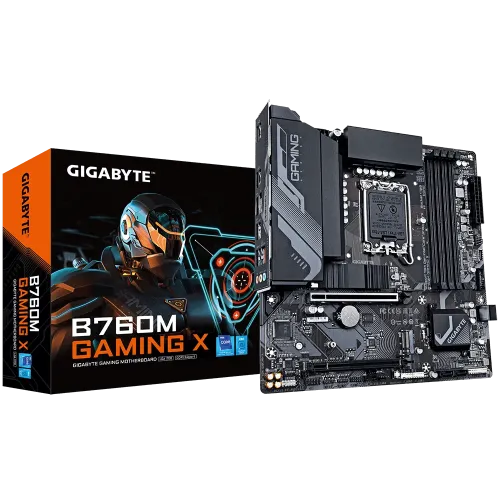

GIGABYTE B760M GAMING X mATX Motherboard

Status
In Stock
4 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE B760M GAMING X mATX Motherboard

Product Description

GIGABYTE B760M GAMING X mATX Motherboard

Designed for gaming enthusiasts and power users, the GIGABYTE B760M GAMING X is a high-performance motherboard that offers exceptional performance, reliable connectivity, and convenient upgradability. With its robust feature set and support for the latest 14th, 13th, and 12th Gen Intel processors, this motherboard is the perfect choice for anyone seeking to build or upgrade their gaming PC.

Key Features and Benefits

  • Support for 14th, 13th, and 12th Gen Intel processors with LGA 1700 socket
  • Quad-channel DDR5 memory support with speeds up to 7600(OC)
  • Realtek 2.5GbE LAN chip for fast and reliable networking
  • PCIe 4.0 x16 slot with EZ-Latch feature for easy GPU installation and removal
  • Advanced thermal design with M.2 Thermal Guard for optimal M.2 SSD performance

Proprietary Technologies and Features

The GIGABYTE B760M GAMING X motherboard features a range of proprietary technologies and features that enhance its performance and usability. The motherboard's Hybrid 8+1+1 Phases Digital VRM solution provides exceptional power delivery and stability, while the Smart Fan 6 feature allows for precise control over fan speeds and optimizes cooling performance while minimizing noise levels. Additionally, the motherboard's Q-Flash Plus feature enables users to update the BIOS firmware without the need to install the CPU, memory, and graphics card, providing a convenient and hassle-free method for keeping the system up to date.

Part ID: #CAN-01308 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M GAMING X mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House GIGABYTE B760M GAMING X mATX Motherboard
In Stock 22,000 4 hours ago
Buy Now
Computer Village GIGABYTE B760M GAMING X mATX Motherboard
In Stock 22,600 4 hours ago
Buy Now
Skyland BD GIGABYTE B760M GAMING X mATX Motherboard
Check Stock Call for Price 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Memory

Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 192 GB (48 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M GAMING X
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7600(OC)
Graphics Output 1x HDMI, 1x DisplayPort
Features Realtek 2.5GbE LAN chip
Part ID: #CAN-01308 Last Updated: 1 month ago
