Product Description

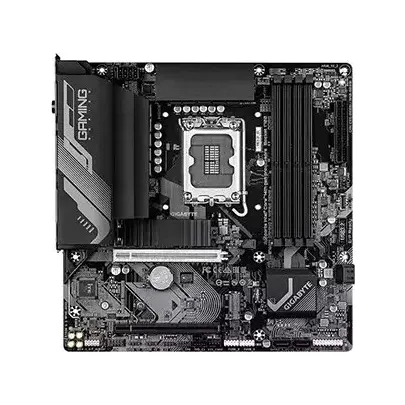

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **22,500 ৳**, with active inventory listings tracked from TechLand BD, Ultra Technology.
Part ID: #CAN-01458
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
WiFi
Intel® Wi-Fi 6E AX210- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Audio
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
14th and 13th Generation Intel Core i9/i7 Processors:- Support for DDR5 5600/5200/4800/4400 MT/s memory modules13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:- Support for DDR5 4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset
Intel B760 Express Chipset
Graphics
Integrated Graphics Processor-Intel HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU
Other Features
iTE I/O Controller ChipVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
Bundled Software
Norton Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Supported Storage
CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
External I/O Ports
3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x HDMI port (Note)1 x DisplayPort (Note)1 x RJ-45 port3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers3 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper
Part ID: #CAN-01458
Last Updated: 2 days ago
Gigabyte B760M GAMING X MotherboardGigabyte B760M GAMING X Motherboard designed with the LGA1700 socket, supporting Intel’s 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors. This ensures users can enjoy future-ready compatibility along with superior multitasking and performance for both gaming and productivity.Advanced Memory CapabilityEquipped with four DDR5 DIMM slots, this motherboard supports up to 256 GB of high-speed memory. Depending on the processor, it can handle DDR5 modules up to 5600 MT/s. It also supports Intel XMP profiles, offering users the ability to fine-tune memory performance for maximum efficiency.High-Speed Storage OptionsThe B760M provides flexible storage with two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors. This allows users to configure multiple SSDs and HDDs for faster boot times, quick game loading, and reliable data storage. RAID 0/1/5/10 support further enhances performance and redundancy.Next-Gen Graphics & ExpansionWith one PCIe 5.0 x16 slot and one PCIe 3.0 x4 slot, this board ensures support for the latest graphics cards and high-bandwidth devices. HDMI 2.1 and DisplayPort 1.2 outputs allow 4K resolutions at smooth refresh rates, delivering excellent visual clarity.Superior Networking & ConnectivityFeaturing Realtek 2.5GbE LAN and Intel Wi-Fi 6E AX210, the motherboard provides fast, stable, and low-latency connections. It also supports Bluetooth 5.3 for seamless wireless peripheral connectivity.Rich Audio & USB SupportThe integrated Realtek Audio CODEC delivers immersive 7.1-channel high-definition sound. For connectivity, it offers multiple USB 3.2 Gen 2, Gen 1, and USB 2.0 ports, along with a USB Type-C header for modern devices.Compact & Feature-Rich DesignBuilt on a Micro-ATX form factor (24.4 x 24.4 cm), the B760M GAMING X GEN5 packs high-end features in a compact design. With support for advanced cooling, RGB lighting, and robust power delivery, it is an ideal choice for gamers and PC builders.FeaturesSupports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors (LGA1700 socket)Intel B760 Express chipset with AMI UEFI BIOS4 x DDR5 DIMM slots, up to 256GB, speeds up to 5600 MT/s (with XMP support)Dual M.2 PCIe 4.0 slots + 4 x SATA 6Gb/s connectors, RAID 0/1/5/10 supportPCIe 5.0 x16 slot + PCIe 3.0 x4 slot for GPUs and expansion cardsIntegrated HDMI 2.1 & DisplayPort 1.2 (supports up to 4K resolution)Realtek 2.5GbE LAN + Intel Wi-Fi 6E AX210 with Bluetooth 5.3Realtek Audio CODEC, supports 2/4/5.1/7.1-channel HD audioMultiple USB ports: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0RGB Fusion support with addressable and RGB LED strip headersQ-Flash Plus button for easy BIOS updatesCompact Micro-ATX form factor (24.4 x 24.4 cm)..
