Product Description

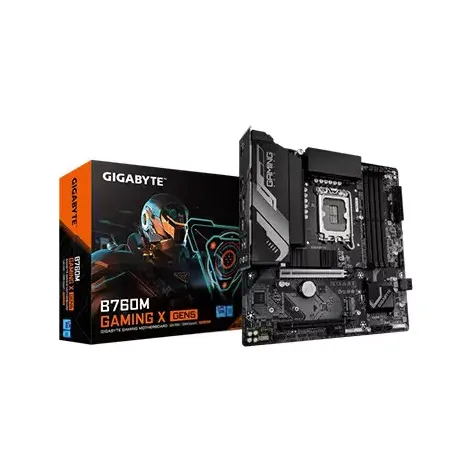

Unleash Gaming Performance with the Gigabyte B760M GAMING X GEN5 DDR5
The Gigabyte B760M GAMING X GEN5 DDR5 motherboard is designed for serious gamers and content creators seeking a robust platform to power their Intel Core processors. This Micro ATX motherboard delivers exceptional performance, reliability, and features to take your gaming experience to the next level.
Key Features and Benefits- Supports Intel Core 13th and 14th Gen processors for exceptional performance and power efficiency
- DDR5 memory support with speeds up to 6000MHz for enhanced gaming and multitasking capabilities
- High-quality PCIe 5.0 slots for fast storage and graphics card performance
- Robust power delivery system with high-quality chokes and capacitors for stable voltage regulation
- Advanced cooling system with M.2 heatsinks and optimized PCB layout for improved thermal efficiency
GIGABYTE Gaming Features
The B760M GAMING X GEN5 DDR5 motherboard boasts GIGABYTE's proprietary technologies, including AORUS Engine for easy overclocking and fan control, and Smart Fan 6 for intelligent cooling management. Additionally, the motherboard features a high-quality audio capacitors and a rear panel with multiple USB 3.2 Gen 2 ports for seamless connectivity.
Part ID: #CAN-01436
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Gigabyte B760M GAMING X GEN5 DDR5 Intel Micro ATX Motherboard
|
In Stock | 20,800 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual-channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and the number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset
Intel B760 Express Chipset
Graphics
Integrated Graphics Processor-Intel HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x216060 HzSupport for the HDMI 2.1 version and HDCP 2.3.Support native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096x230460 Hz* Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Controller
iTE I/O Controller Chip
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Bundled Software
Norton Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Supported Storage
CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
External I/O Ports
3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports1 x HDMI port (Note)1 x DisplayPort (Note)1 x RJ-45 port3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers3 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper
Part ID: #CAN-01436
Last Updated: 1 month ago
