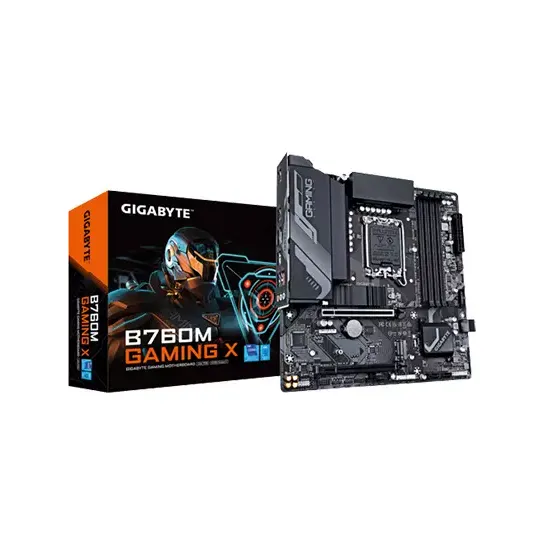

GIGABYTE B760M GAMING X DDR5 13TH AND 12TH GEN INTEL MATX MOTHERBOARD

Status
In Stock
3 stores
Lowest 20,500 BDT
Price Range 20,500 to 21,500 BDT Save 5%
GIGABYTE B760M GAMING X DDR5 13TH AND 12TH GEN INTEL MATX MOTHERBOARD

Product Description

Unlock Unbridled Performance with the GIGABYTE B760M GAMING X DDR5 Motherboard

The GIGABYTE B760M GAMING X DDR5 motherboard is designed for gamers, content creators, and PC enthusiasts who demand exceptional performance and compatibility. This powerful micro ATX motherboard supports 13th and 12th Generation Intel Core processors, offering a robust platform for a wide range of applications, from office work to industrial tasks and home computing.

Key Features and Performance Highlights

  • Supports 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors on the LGA1700 socket
  • Four DDR5 DIMM slots with speeds of up to 7600 MT/s when overclocked, accommodating up to 192 GB of DDR5 RAM
  • PCIe 4.0 x16 slot for the CPU, enabling high-speed data transfer and compatibility with the latest graphics cards
  • Realtek Audio CODEC with high-definition audio support for immersive sound quality
  • Realtek 2.5GbE LAN chip for fast and stable network performance

Proprietary Technologies and Advanced Features

The GIGABYTE B760M GAMING X motherboard boasts a range of advanced features, including a robust power delivery system, multiple storage options, and high-speed networking capabilities. Additionally, it features a licensed AMI UEFI BIOS with support for industry standards like PnP, DMI, WfM, SM BIOS, and ACPI, ensuring compatibility with a wide range of software and hardware components.

Hardware Monitoring and Operating System Compatibility

The motherboard includes hardware monitoring capabilities for voltage, temperature, fan speed, and water cooling flow rate detection, providing system health monitoring and fan speed control. It supports Windows 11 64-bit and Windows 10 64-bit operating systems, ensuring compatibility with the latest software.

Part ID: #CAN-01544 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology GIGABYTE B760M GAMING X DDR5 13th and 12th Gen mATX Motherboard
In Stock 20,500 4 hours ago
Buy Now
TechLand BD GIGABYTE B760M GAMING X DDR5 13TH AND 12TH GEN INTEL MATX MOTHERBOARD
In Stock 21,100 5 hours ago
Buy Now
Nexus Computer GIGABYTE B760M GAMING X DDR5 INTEL MOTHERBOARD
In Stock 21,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4
Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset Intel® B760 Express Chipset
Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Warranty 3 YEARS
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
