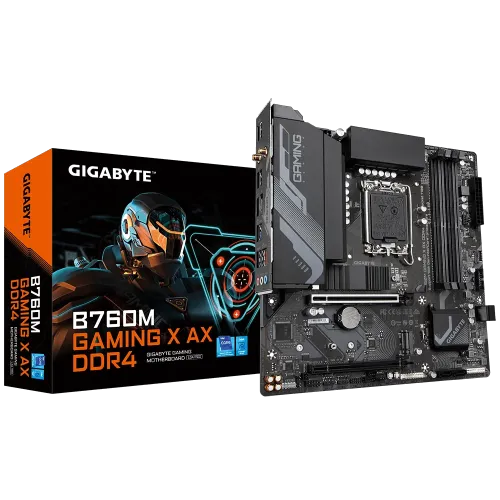

GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard

Status
In Stock
6 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard

Product Description

GIGABYTE B760M GAMING X AX DDR4 Motherboard

Designed with gaming enthusiasts and content creators in mind, the GIGABYTE B760M GAMING X AX DDR4 motherboard offers exceptional performance and versatility for Intel Series Processors from the 14th, 13th, and 12th generations. With its robust feature set and cutting-edge technologies, this motherboard is the perfect choice for building a high-performance gaming PC or content creation station.

Key Features and Performance Highlights

  • Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors through an LGA 1700 socket
  • Dual-channel DDR4 memory architecture with 4 DIMMs, supporting up to 128GB of memory at 5333(OC)
  • Two PCIe 4.0 x4 M.2 ports for next-generation storage and rapid data transfer
  • Realtek 2.5GbE LAN and Intel Wi-Fi 6E AX211 for fast and reliable network connectivity
  • Smart Fan 6 with multiple temperature sensors and hybrid fan headers for optimal cooling and noise reduction

Proprietary Technologies and Features

The GIGABYTE B760M GAMING X AX DDR4 motherboard features a sophisticated thermal design, including an M.2 thermal protector, to ensure VRM power stability and M.2 SSD performance. Additionally, the motherboard includes a rapid-release EZ-Latch PCIe 4.0 x16 slot, a front USB-C 10Gb/s port, and multiple connectivity options, including DP and HDMI. The Q-Flash Plus feature allows for easy BIOS updates without the need to install the CPU, RAM, or graphics card.

Part ID: #CAN-01304 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer GIGABYTE B760M GAMING X AX DDR4 13TH GEN MOTHERBOARD
In Stock 19,999 5 hours ago
Buy Now
Computer Village GIGABYTE B760M GAMING X AX 13th And 12th Gen Intel DDR4 MATX Motherboard
In Stock 20,000 4 hours ago
Buy Now
Nexus Computer Gigabyte B760M GAMING X AX DDR4 Motherboard
In Stock 21,900 4 hours ago
Buy Now
TechLand BD GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD
Check Stock 19,800 5 hours ago
Buy Now
PC House GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
Check Stock 23,900 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors

Memory

Type DDR4
Slots 4
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M GAMING X AX DDR4
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR4, Max 128GB 5333(OC)
Graphics Output 1x HDMI, 1x DisplayPort
Features Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
