Product Description

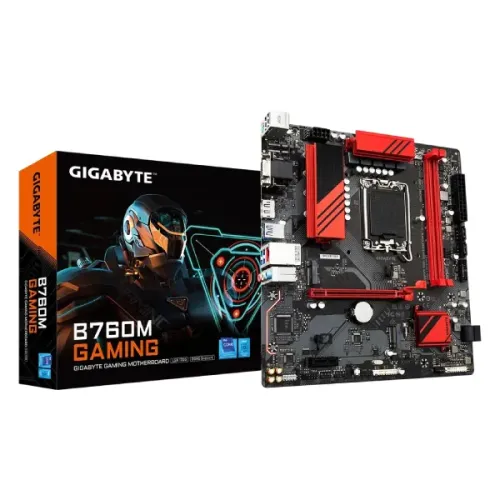

GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
The GIGABYTE B760M GAMING DDR5 Micro ATX motherboard is a powerful and versatile platform designed for gaming enthusiasts and power users. Whether you're building a high-performance gaming rig or a professional workstation, this motherboard offers the cutting-edge features and compatibility you need to unlock the full potential of your system.
Key Features and Benefits- Supports 14th, 13th, and 12th Gen Intel processors using the LGA1700 socket
- Up to 2 DDR5 memory modules with a maximum capacity of 128GB and speeds up to 8000MHz (OC)
- Multiple graphics outputs, including 1x HDMI, 1x DisplayPort, and 1x D-Sub port
- Realtek 2.5GbE LAN chip, enabling fast network speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps
- Hybrid 6+2+1 Phases Digital VRM Solution for stable power delivery
- Two PCIe 4.0 x4 M.2 connectors for high-speed SSD storage options
The GIGABYTE B760M GAMING DDR5 motherboard boasts a range of advanced technologies and features, including:
Smart Fan 6 Technology
Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for quiet operation. This ensures that your system stays cool and runs smoothly, even under heavy loads.
Q-Flash Plus
Q-Flash Plus enables BIOS updates without the need to install the CPU, memory, or graphics card, simplifying system maintenance and reducing downtime.
Part ID: #CAN-01305
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Skyland BD
GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
|
In Stock | 19,699 | 4 hours ago | |
|
TechLand BD
GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard
|
In Stock | 19,800 | 5 hours ago | |
|
Creatus Computer
GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
|
In Stock | 19,800 | 4 hours ago | |
|
Ultra Technology
GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
|
In Stock | 19,800 | 4 hours ago | |
|
Sell Tech
GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
2
Supported Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Maximum Memory
Supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub port
USB (s)
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
B760M GAMING DDR5
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR5, Max 128GB 8000(OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub port
Features
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Part ID: #CAN-01305
Last Updated: 1 month ago
