Status
In Stock
5 listings tracked
Lowest Deal
18,800
Best Deal
Price Range
18,800 to 19,100
Save 2%
Product Description

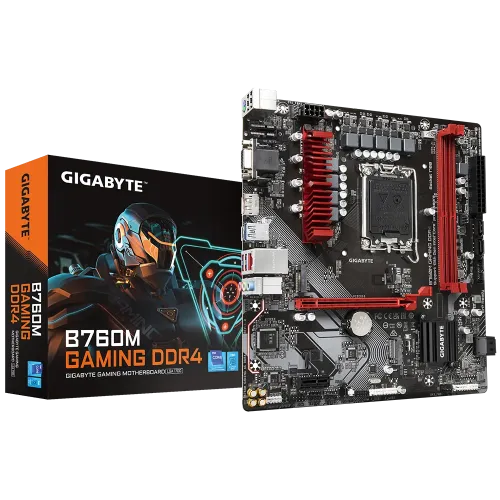

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **18,800 ৳**, compared dynamically across 5 major computer shops.
Part ID: #CAN-01288
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
|
In Stock | Call for Price | 3 hours ago | |
|
Creatus Computer
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
|
In Stock | Call for Price | 2 hours ago | |
|
Ultra Technology
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
|
In Stock | 18,800 | 2 hours ago | |
|
TechLand BD
GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard
|
In Stock | 19,100 | 3 hours ago | |
|
Skyland BD
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR4
Slots
2
Supported Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory
supporting up to 64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI
1x HDMI
D-Sub (s)
1 x D-Sub port
USB (s)
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
B760M GAMING DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR4, Max 64GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Part ID: #CAN-01288
Last Updated: 2 days ago
The GIGABYTE B760M GAMING DDR4 Micro ATX motherboard is engineered to support Intel's 14th, 13th, and 12th generation processors with the LGA1700 socket, making it a versatile choice for gamers and PC enthusiasts. This motherboard accommodates up to 64GB of DDR4 memory across two slots, with speeds reaching up to 5333 MHz when overclocked. It features a robust Hybrid 6+2+1 Phases Digital VRM solution, ensuring stable and efficient power delivery to the CPU. For graphics output, it offers 1x HDMI and 1x DisplayPort, providing flexible display options. The board is equipped with a Realtek 2.5GbE LAN chip, enabling fast network speeds of up to 2.5 Gbps. In terms of storage, the B760M supports next-generation speeds with two PCIe 4.0 x4 M.2 connectors, ideal for fast NVMe SSDs. The EZ-Latch design on the PCIe 4.0x16 slot allows for quick and easy GPU installation. Connectivity options are extensive, including a rear USB-C 5Gb/s port, along with DisplayPort, HDMI, and D-Sub outputs. The Smart Fan 6 technology provides advanced cooling capabilities with multiple temperature sensors and hybrid fan headers that include a FAN STOP feature. Additionally, the Q-Flash Plus function allows users to update the BIOS without needing to install the CPU, memory, or graphics card, simplifying the process of keeping the system up-to-date.Buy GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard from the best Motherboard Shop in BDIn Bangladesh, you can get the original GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B760M GAMING DDR4 Motherboard comes with 3 years warranty.
