Status
In Stock
2 listings tracked
Lowest Deal
19,000
Best Deal
Price Range
19,000 to 19,200
Save 1%
Product Description
Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **19,000 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01457
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
Raid
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
WiFi
Intel Wi-Fi 6E AX211- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Audio
Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x
Memory
14th and 13th Generation Intel Core i9/i7 Processors:- Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:- Support for DDR5 4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Chipset
Intel B760 Express Chipset
Graphics
Integrated Graphics Processor-Intel HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 HzSupport for HDMI 2.1 version and HDCP 2.3.Support native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Warranty
3 Years
Bluetooth
BLUETOOTH 5.3Support for 11ax 160MHz wireless standard
Dimension
24.4cm x 24.4cm
Controller
iTE I/O Controller Chip
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsL3 cache varies with CPU
Other Features
I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Special Features
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
Software Features
Norton Internet Security (OEM version)LAN bandwidth management software
Supported Storage
CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectors
External I/O Ports
2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R) / (2T2R) (Note) jkl1 x D-Sub port1 x HDMI port1 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper
Part ID: #CAN-01457
Last Updated: 2 days ago

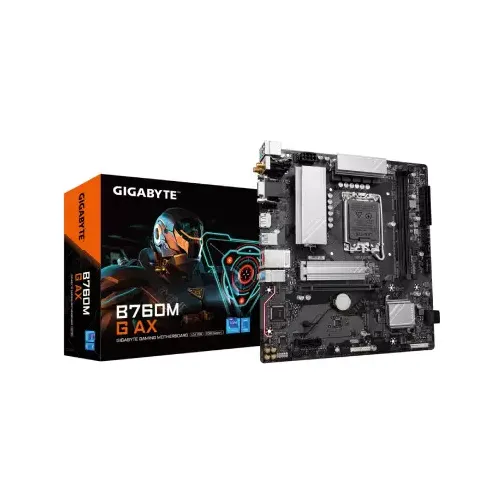

GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard is a powerful and feature-rich motherboard designed for modern Intel processors. It supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs with the LGA1700 socket, ensuring top-tier performance for both gaming and productivity. Equipped with the Intel B760 Express chipset, it offers reliable and efficient system operation. This motherboard supports up to 128GB DDR5 memory with speeds up to 8000MHz (O.C.), delivering ultra-fast data transfer and smoother multitasking. For storage, it includes two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, allowing high-speed SSD and HDD configurations with RAID 0, 1, 5, and 10 support. Graphics output options include HDMI, DisplayPort, and D-Sub, supporting resolutions up to 4K@60Hz. Connectivity is enhanced with Realtek 2.5GbE LAN, Intel Wi-Fi 6E, and Bluetooth 5.3, ensuring seamless online performance. It also features high-quality Realtek Audio CODEC for immersive sound. With its durable Micro ATX design, RGB headers, and smart fan control, the GIGABYTE B760M G AX DDR5 motherboard offers exceptional stability, aesthetics, and versatility for modern PC builders.Unleash the Power of 14th, 13th, and 12th Gen Intel ProcessorsThe GIGABYTE B760M G AX DDR5 motherboard supports a wide range of Intel processors, including 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs with the LGA1700 socket. This ensures that you can take full advantage of the latest technology and enjoy a seamless computing experience.Lightning-Fast DDR5 Memory SupportWith support for up to 128GB of DDR5 memory running at speeds of up to 8000MHz (O.C.), the GIGABYTE B760M G AX DDR5 motherboard delivers ultra-fast data transfer and smoother multitasking. Say goodbye to lag and enjoy blazing-fast performance with this impressive memory support.Storage Options GaloreWhether you prefer SSDs or HDDs, the GIGABYTE B760M G AX DDR5 motherboard has you covered. With two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, you can configure high-speed storage solutions to suit your needs. Plus, with RAID 0, 1, 5, and 10 support, you can ensure that your data is safe and secure at all times.Stunning Graphics OutputExperience crystal-clear visuals with the GIGABYTE B760M G AX DDR5 motherboard's graphics output options. With support for HDMI, DisplayPort, and D-Sub, you can enjoy resolutions of up to 4K@60Hz for a truly immersive viewing experience. Whether you're gaming or watching movies, this motherboard has you covered.Seamless ConnectivityStay connected with ease thanks to the GIGABYTE B760M G AX DDR5 motherboard's enhanced connectivity options. With Realtek 2.5GbE LAN, Intel Wi-Fi 6E, and Bluetooth 5.3, you can enjoy seamless online performance without any lag or interruptions. Plus, the high-quality Realtek Audio CODEC ensures that you'll experience immersive sound for all your multimedia needs.Durable Design and Smart FeaturesThe GIGABYTE B760M G AX DDR5 motherboard is built to last, with a durable Micro ATX design that ensures stability and reliability. Plus, with RGB headers and smart fan control, you can customize your build to suit your style and keep your system running cool and quiet at all times...
