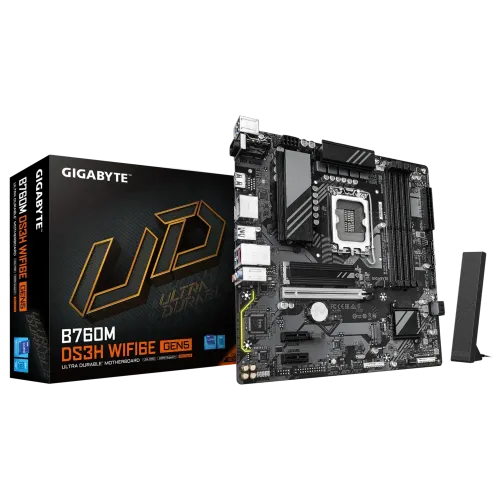

GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard

Status
In Stock
2 stores
Lowest 19,000 BDT
Price Range Single price listing
GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard

Product Description

Unlock Ultimate Performance with the GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard The GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard is a powerful and compact option for gamers, creators, and professionals seeking modern capabilities without sacrificing stability or performance. Built with the Intel B760 Express chipset, it supports a wide range of processors and memory configurations, making it ideal for a variety of designs. Key Features and Performance Highlights
  • Supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron CPUs via the LGA1700 socket
  • Four DDR5 DIMM ports supporting up to 256GB capacity and overclocking rates of up to DDR5-7600
  • Integrated Intel HD Graphics supporting HDMI 2.1 with resolutions of up to 4K at 60Hz and multiple DisplayPort outputs
  • Realtek 2.5GbE LAN and Intel Wi-Fi 6E AX210 module for high-speed networking and wireless connectivity
  • Robust expansion options with one PCIe 5.0 x16 port and two PCIe 3.0 x1 slots
Proprietary Technologies and Features The GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard also boasts several proprietary technologies and features, including:
  • Support for GIGABYTE Control Center (GCC) software for easy system monitoring and control
  • Q-Flash Plus for simple BIOS updates and fan monitoring
  • Smart Backup for secure data protection
  • RGB and ARGB headers for customizable lighting effects
This powerful motherboard is designed to provide a seamless user experience, with compatibility for Windows 10 and 11 operating systems and a compact micro ATX form factor of 24.4cm x 24.4cm. Whether you're a gamer, creator, or professional, the GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard is the perfect choice for your next PC build.
Part ID: #CAN-01290 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
TechLand BD Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard
In Stock 19,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe

Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory 14th and 13th Generation Intel Core i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
USB (s) Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header 3 x audio jacks
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M DS3H WIFI6E GEN5
Supported CPU 14th 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DDR5 DIMM, Max. 7600(O.C), Up to 256 GB
Graphics Output 2x DisplayPort, 1x HDMI
Features Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX210, Bluetooth 5.3
