Product Description

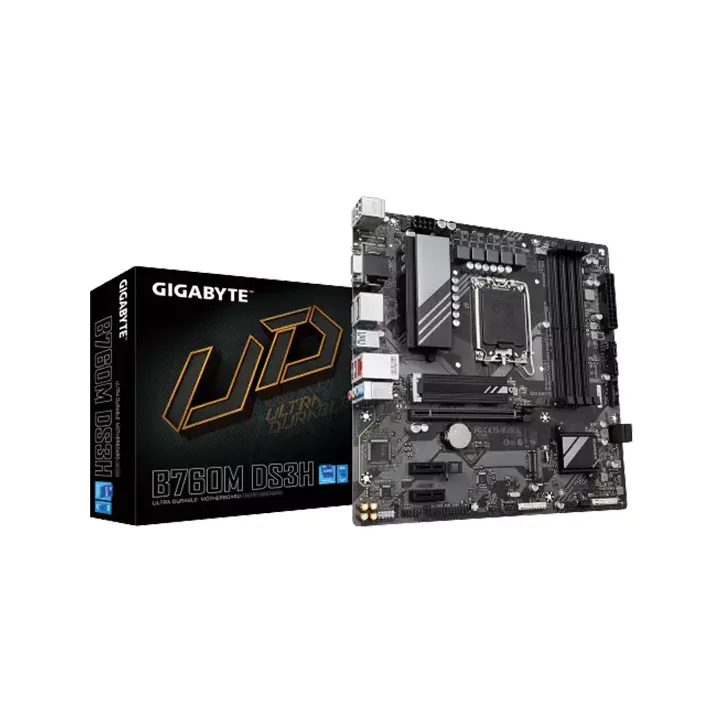

Unlock Unparalleled Performance with the Gigabyte B760M DS3H DDR5 Motherboard
The Gigabyte B760M DS3H DDR5 motherboard is designed for users seeking to build a powerful system with support for Intel's 12th and 13th generation Core processors. This motherboard offers advanced features and future-proofing for gaming, content creation, and productivity tasks, making it an excellent choice for those looking to harness the full potential of their system.
Key Features and Benefits
- Supports Intel's 12th and 13th Gen Core processors for excellent multi-threaded performance
- DDR5 memory support with speeds of up to 6400MHz (OC) for improved system responsiveness
- Multiple M.2 connectors and SATA 6Gb/s ports for fast storage solutions
- Robust connectivity with Realtek 2.5GbE LAN and USB 3.2 Gen 2 ports
- Integrated Intel HD Graphics with support for up to four displays simultaneously
Advanced Technologies
The Gigabyte B760M DS3H DDR5 motherboard features a range of advanced technologies, including the Hybrid 6+2+1 Phases Digital VRM Solution for unparalleled performance, dual-channel DDR5 support with 4 DIMMs and XMP memory module support, and M.2 Thermal Guard to ensure M.2 SSD performance. Additionally, the motherboard includes EZ-Latch, a PCIe 4.0 x16 slot with a quick release design, and Q-Flash Plus, which allows for BIOS updates without installing the CPU, memory, and graphics card.
Part ID: #CAN-01626
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
GIGABYTE B760M DS3H DDR5 13th and 12th Gen mATX Motherboard
|
In Stock | 16,499 | 4 hours ago | |
|
Nexus Computer
Gigabyte B760M DS3H DDR5 Motherboard
|
In Stock | 17,500 | 3 hours ago | |
|
TechLand BD
GIGABYTE B760M DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD
|
Check Stock | 16,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel® B760 Express Chipset
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version.
Warranty
03 Years Warranty
Dimension
24.4cm x 24.4cm
Multi-GPU
Yes
Form Factor
Micro ATX Form Factor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Other Features
I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Software Features
Norton® Internet Security (OEM version) LAN bandwidth management software Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
External I/O Ports
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01626
Last Updated: 1 month ago
