Product Description

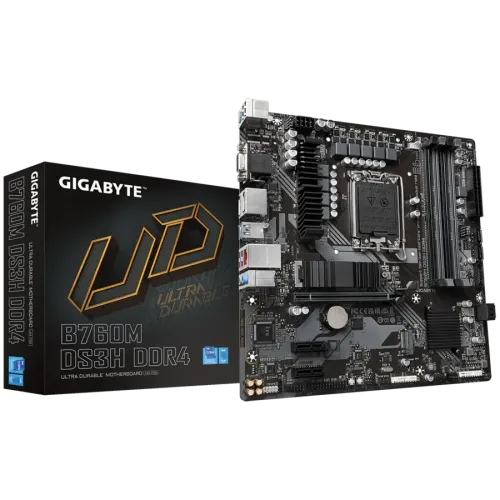

GIGABYTE B760M DS3H DDR4 mATX Motherboard
This motherboard is designed for high-performance enthusiasts and professionals who demand the best from their systems. The GIGABYTE B760M DS3H DDR4 mATX Motherboard offers a robust feature set and exceptional performance, making it an ideal choice for building a powerful gaming or workstation PC.
Key Features and Benefits
Technical Highlights:
- Supports Intel Socket LGA 1700 and 13th, 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Dual-channel DDR4 memory with four DIMM slots, supporting up to 128GB of memory and speeds up to 5333(OC)
- Two PCIe 4.0 x4 M.2 ports for next-generation storage solutions
- Realtek 2.5GbE LAN chip for fast networking
- Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Proprietary Technologies and Performance Enhancements
Advanced Cooling and Performance Features:
The GIGABYTE B760M DS3H DDR4 mATX Motherboard features a robust cooling system, including multiple fan headers and a M.2 Thermal Guard to ensure optimal performance and reliability. Additionally, the motherboard includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networking, and a rear panel with additional connectivity options, including USB-C 10Gb/s, DP, and HDMI.
Part ID: #CAN-01274
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M DS3H DDR4 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
Gigabyte B760M DS3H DDR4 Motherboard
|
In Stock | 16,500 | 3 hours ago | |
|
Creatus Computer
GIGABYTE B760M DS3H DDR4 13TH GEN MICRO-ATX MOTHERBOARD
|
In Stock | 16,599 | 4 hours ago | |
|
Skyland BD
GIGABYTE B760M DS3H DDR4 mATX Motherboard
|
In Stock | 16,600 | 3 hours ago | |
|
PC House
GIGABYTE B760M DS3H DDR4 mATX Motherboard
|
In Stock | 17,000 | 4 hours ago | |
|
Sell Tech
GIGABYTE B760M DS3H DDR4 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
GIGABYTE B760M DS3H DDR4 13/12TH GEN INTEL ATX MOTHERBOARD
|
Check Stock | 16,600 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Memory
Type
DDR4
Slots
4
Supported Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
1 x front panel audio header 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M DS3H DDR4
Supported CPU
14th/ 13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5GbE LAN chip
Part ID: #CAN-01274
Last Updated: 1 month ago
