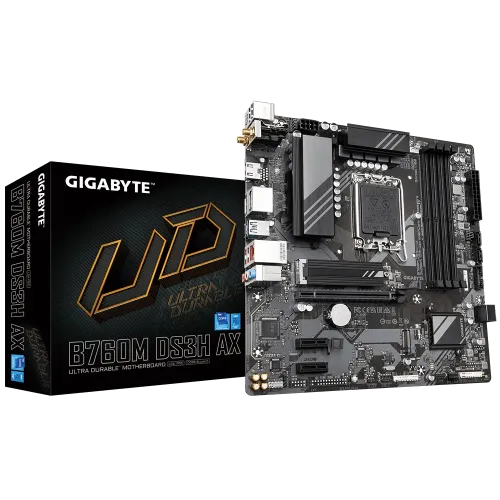

GIGABYTE B760M DS3H AX mATX Motherboard

Status
In Stock
4 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE B760M DS3H AX mATX Motherboard

Product Description

GIGABYTE B760M DS3H AX mATX Motherboard

Upgrade Your Gaming Experience

Designed for enthusiasts and gamers, the GIGABYTE B760M DS3H AX mATX Motherboard offers a powerful platform for Intel Core 14th, 13th, and 12th Gen Processors. With its robust feature set and high-performance capabilities, this motherboard is perfect for building a fast and reliable gaming PC.

Key Features and Benefits
  • Support for Intel Socket LGA 1700 and 14th, 13th, and 12th Gen Intel Series Processors
  • Dual-channel DDR5 memory with four DIMM slots and support for XMP memory modules
  • Two PCIe 4.0 x4 M.2 ports with M.2 Thermal Guard for optimal SSD performance
  • 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast and reliable networking
  • Smart Fan 6 with multiple temperature sensors and hybrid fan headers
Advanced Technologies and Features

Unmatched Cooling and Performance

The GIGABYTE B760M DS3H AX Motherboard features a Hybrid 6+2+1 Phases Digital VRM Solution, ensuring stable and efficient power delivery to your CPU. Additionally, the motherboard includes an EZ-Latch PCIe 4.0 x16 slot with a rapid-release design, making it easy to upgrade and maintain your system.

Effortless Upgrades and Connectivity

The motherboard's rear panel provides a range of connectivity options, including USB-C 10Gb/s, DisplayPort, and HDMI. With Q-Flash Plus, you can upgrade your BIOS without the need for a CPU, RAM, or graphics card, making it easy to keep your system up-to-date and running smoothly.

Part ID: #CAN-01281 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M DS3H AX mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Skyland BD GIGABYTE B760M DS3H AX mATX Motherboard
In Stock 17,399 3 hours ago
Buy Now
Computer Village GIGABYTE B760M DS3H AX mATX Motherboard
In Stock 17,700 4 hours ago
Buy Now
Ultra Technology GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
In Stock 17,800 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Memory

Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to triple-display at the same time

Connector & Ports

HDMI 1x HDMI
Display Port (s) 2x DisplayPort
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M DS3H AX
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7600(OC)
Graphics Output 1x HDMI, 2x DisplayPort
Features 2.5GbE LAN & Wi-Fi 6E 802.11ax
