Product Description

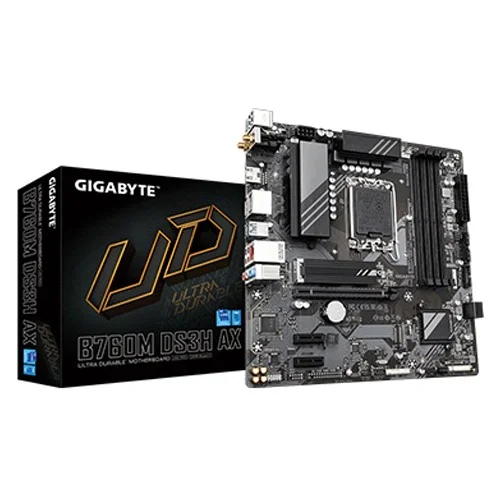

Unlock Unparalleled Performance with the GIGABYTE B760M DS3H AX DDR5
This motherboard is designed for the most demanding users, offering a powerful platform for gaming, content creation, and professional applications. With its robust features and exceptional performance, the GIGABYTE B760M DS3H AX DDR5 is the perfect choice for those seeking a reliable and future-proof solution.
Key Features and Benefits:
- Supports 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors
- Four DDR5 slots with support for high-speed memory modules up to 7600 MT/s (when overclocked)
- Integrated Intel HD Graphics support with HDMI and DisplayPort outputs for up to triple-display at high resolutions
- Robust power delivery with a 6+2+1 phase hybrid digital VRM design
- Support for PCIe 4.0, M.2 connectors, and SATA 6Gb/s connectors for high-speed storage and connectivity
- Realtek 2.5GbE LAN and Wi-Fi 6E for fast networking and online experiences
Exclusive GIGABYTE Technologies:
Hybrid 6+2+1 Phases Digital VRM Solution
The GIGABYTE B760M DS3H AX DDR5 features a hybrid 6+2+1 phase digital VRM solution, providing a robust and efficient power delivery system for enhanced performance and stability. This advanced technology ensures seamless power management, allowing users to push their system to the limits without compromising on reliability.
Part ID: #CAN-01893
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
4
Supported Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modulesv Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to triple-display at the same time
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2x DisplayPort
USB (s)
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty
3 Years
Part ID: #CAN-01893
Last Updated: 1 month ago
