Product Description

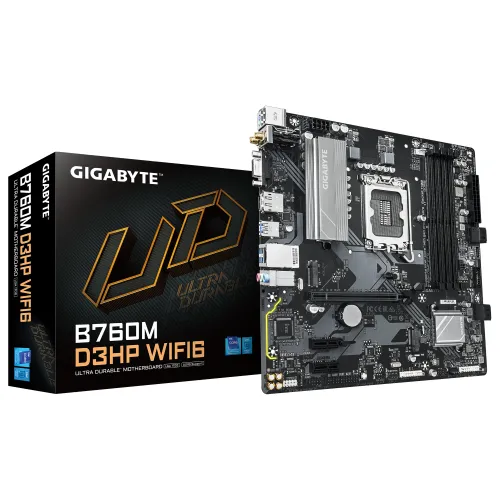

GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
Designed for gamers, creators, and PC builders, the GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard is a powerful and feature-rich solution for modern builds. Delivering a balance of speed, reliability, and compact design, this motherboard is perfect for those seeking a high-performance computing experience.
Key Features and Performance Highlights
- Support for 12th, 13th, and 14th Gen Intel Core Processors with LGA1700 socket for seamless CPU upgrades and compatibility
- Dual Channel DDR5 Memory with up to 256GB capacity and XMP profiles for high-speed tuning and smooth multitasking
- Wi-Fi 6 Wireless Technology and Gigabit LAN for enhanced connectivity and faster online gaming and file transfers
- Pcie 4.0 M.2 Slots for future-ready storage and faster loading times
- Hybrid 4+1+1 Phase Digital VRM Design for stable power delivery and efficient system management
Advanced Technologies and Features
Smart Fan 6 Cooling for efficient heat dissipation and optimized system performance
Q-Flash Plus BIOS Update Support for effortless system updates and BIOS management
GIGABYTE Control Center (GCC) for comprehensive system monitoring and management
Part ID: #CAN-01029
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Netstar
GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
|
In Stock | 18,800 | 5 hours ago | |
|
Creatus Computer
GIGABYTE B760M D3HP WIFI6 Micro ATX Motherboard
|
In Stock | 19,000 | 5 hours ago | |
|
Ultra Technology
GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard
|
In Stock | 19,000 | 4 hours ago | |
|
Skyland BD
GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
|
In Stock | 19,100 | 4 hours ago | |
|
Star Tech
GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
|
In Stock | 19,300 | 1 week ago | |
|
TechLand BD
GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard
|
In Stock | 19,300 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
4
Supported Memory
Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub port
USB (s)
Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
B760M D3HP WIFI6
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 256GB 5600
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub port
Features
Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3
Part ID: #CAN-01029
Last Updated: 1 month ago
