Status
In Stock
9 stores
Lowest Deal
17,300 BDT
Best Deal
Price Range
Single price listing
Product Description

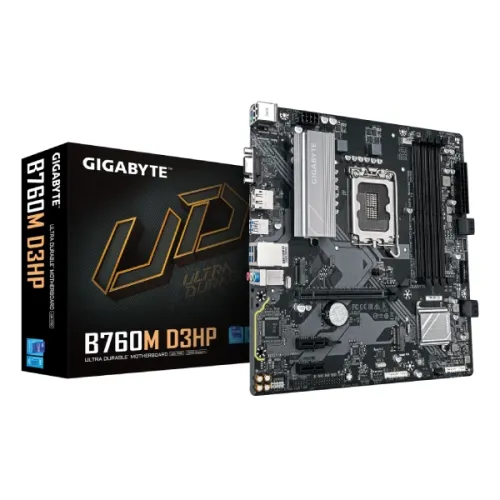

Unlock Unmatched Performance with the GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
The GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard is a powerhouse platform for PC enthusiasts and professionals seeking to construct high-performance systems with the latest Intel Core CPUs. Designed to deliver exceptional performance, this motherboard provides a robust foundation for gaming, productivity, and future-ready PC setups.
Key Features and BenefitsThe GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard boasts an impressive array of features and benefits, including:
- Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs
- Four DDR5 DIMM slots supporting up to 256 GB of system memory and speeds of up to 5600 MT/s
- Dual-channel memory design with XMP support for optimal overclocking
- Onboard Intel UHD Graphics and triple-display output via D-Sub, HDMI 2.1, and DisplayPort 1.2
- Two PCIe 4.0 x4 M.2 connections and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support
The GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard incorporates several innovative technologies and features, including:
- Smart Fan 6 technology with hybrid fan headers and FAN STOP feature for silent and economical operation
- Q-Flash Plus for easy BIOS updates without installing a CPU or RAM
- Hybrid 4+1+1 Phase Digital VRM Solution for consistent and clean power delivery
- Extensive USB connectivity, including USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, and USB 2.0
Part ID: #CAN-01022
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Netstar
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 16,400 | 4 hours ago | |
|
Ultra Technology
Gigabyte B760M D3HP DDR5 Intel Motherboard
|
In Stock | 17,000 | 4 hours ago | |
|
Creatus Computer
Gigabyte B760M D3HP DDR5 14th 13th and 12th Gen Intel Motherboard
|
In Stock | 17,200 | 4 hours ago | |
|
Sell Tech
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 17,300 | 4 hours ago | |
|
Skyland BD
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 17,300 | 4 hours ago | |
|
Star Tech
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 17,500 | 1 week ago | |
|
TechLand BD
Gigabyte B760M D3HP DDR5 14th 13th and 12th Gen Intel Motherboard
|
In Stock | 17,500 | 4 hours ago | |
|
Computer Village
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
In Stock | 17,500 | 4 hours ago | |
|
PCB Store
GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard
|
Check Stock | 16,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
4
Supported Memory
Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub port
USB (s)
Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
B760M D3HP DDR5
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 256GB 5600
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub port
Features
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Part ID: #CAN-01022
Last Updated: 1 month ago
