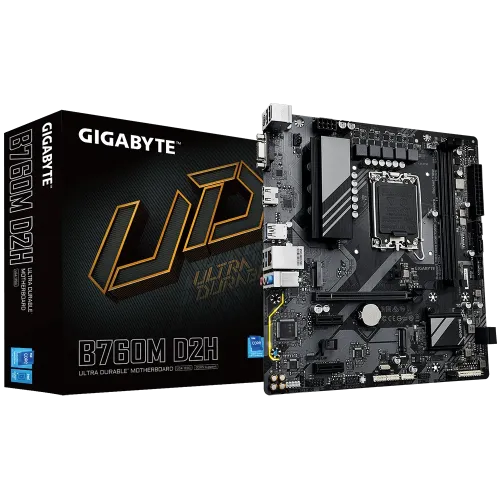

GIGABYTE B760M D2H mATX Motherboard

Status
In Stock
4 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE B760M D2H mATX Motherboard

Product Description

GIGABYTE B760M D2H mATX Motherboard

Upgrade Your Build with the Latest Intel Technology

Designed for enthusiasts and power users, the GIGABYTE B760M D2H mATX Motherboard is a cutting-edge platform that supports the latest 14th, 13th, and 12th Gen Intel Core Processors on the LGA 1700 socket. This motherboard offers unparalleled performance, innovative features, and exceptional connectivity options, making it the perfect choice for building a high-performance gaming PC or content creation workstation.

Key Features and Benefits

  • Supports 14th, 13th, and 12th Gen Intel Core Processors on the LGA 1700 socket
  • DDR5 memory support with up to 96GB capacity and 8000MHz overclocking
  • PCIe 4.0 x16 slot with EZ-Latch quick-release design for easy graphics card installation
  • 2.5GbE LAN port for high-speed and reliable network connectivity
  • Supports M.2 SSDs with PCIe 4.0 x4/x2 speeds and SATA 6Gb/s connectors
  • Realtek Audio CODEC with 2/4/5.1/7.1-channel support and S/PDIF Out

Premium Technologies for Enhanced Performance

The GIGABYTE B760M D2H Motherboard features GIGABYTE's proprietary technologies that enhance performance, cooling, and system stability. These include:

Smart Fan 6 technology, which offers multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal temperature control.

Q-Flash Plus, a feature that allows users to update the BIOS without removing the CPU or memory.

GIGABYTE Control Center (GCC), a software tool that provides users with advanced system monitoring and control.

Part ID: #CAN-01271 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M D2H mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House GIGABYTE B760M D2H 13th and 12th Gen mATX Motherboard
In Stock 15,000 1 month ago
Buy Now
Computer Village GIGABYTE B760M D2H mATX Motherboard
In Stock 17,300 4 hours ago
Buy Now
Sell Tech GIGABYTE B760M D2H mATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Memory

Type DDR5
Slots 2
Supported Memory Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 96 GB (48 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

Connector & Ports

HDMI 1x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M D2H
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 2x DDR5, Max 96GB 8000(O.C.)
Graphics Output 1x HDMI, 1x D-Sub
Features 2.5GbE LAN
Part ID: #CAN-01271 Last Updated: 1 month ago
