Product Description

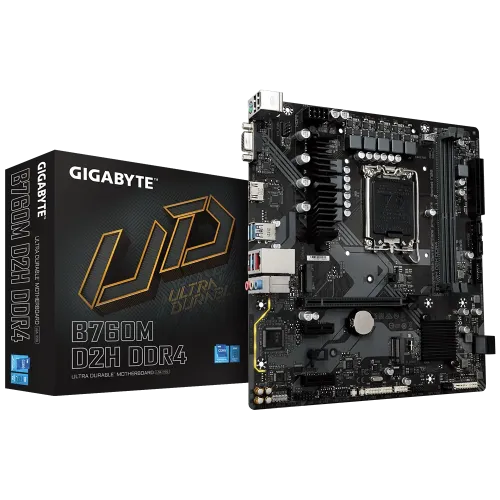

GIGABYTE B760M D2H DDR4 mATX Motherboard for Enthusiasts
The GIGABYTE B760M D2H DDR4 motherboard is designed for PC enthusiasts who demand high-performance and flexibility. This motherboard is perfect for building a powerful gaming PC or a high-end workstation, thanks to its advanced features and compatibility with the latest Intel CPUs.
Key Features and Benefits
Key Highlights:
- Supports 14th/13th/12th Gen Intel Processors (LGA1700)
- Twin-channel DDR4 memory support with up to 64GB of RAM
- Two PCIe 4.0 x4 M.2 connections for next-generation storage
- Realtek 2.5GbE LAN for fast networking
- Support for up to 4 SATA 6Gb/s devices and RAID configurations
Advanced Technologies and Performance Enhancements
Powerful Performance and Cooling: The GIGABYTE B760M D2H DDR4 motherboard features a hybrid 6+2+1 phase digital VRM system, providing unparalleled performance and power delivery. Additionally, the motherboard includes advanced cooling features, such as multiple temperature sensors and hybrid fan headers with fan stops, for optimal system cooling.
Upgrade and Manage Your System with Ease
Easy BIOS Updates and System Management: The motherboard's Q-Flash Plus function allows for easy BIOS updates without the need to install the CPU, RAM, or graphics card. The GIGABYTE Control Center (GCC) also provides a user-friendly interface for monitoring and managing your system's performance, as well as customizing your lighting and fan settings.
Part ID: #CAN-01267
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M D2H DDR4 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Skyland BD
GIGABYTE B760M D2H DDR4 mATX Motherboard
|
In Stock | 14,399 | 4 hours ago | |
|
Creatus Computer
GIGABYTE B760M D2H DDR4 13th Gen Intel mATX Motherboard
|
In Stock | 14,499 | 4 hours ago | |
|
Nexus Computer
Gigabyte B760M D2H DDR4 Motherboard
|
In Stock | 15,000 | 4 hours ago | |
|
Computer Village
GIGABYTE B760M D2H DDR4 mATX Motherboard
|
In Stock | 17,500 | 4 hours ago | |
|
Sell Tech
GIGABYTE B760M D2H DDR4 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD
|
Check Stock | 14,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Memory
Type
DDR4
Slots
2
Supported Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
1 x front panel audio header 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M D2H DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5GbE LAN chip
