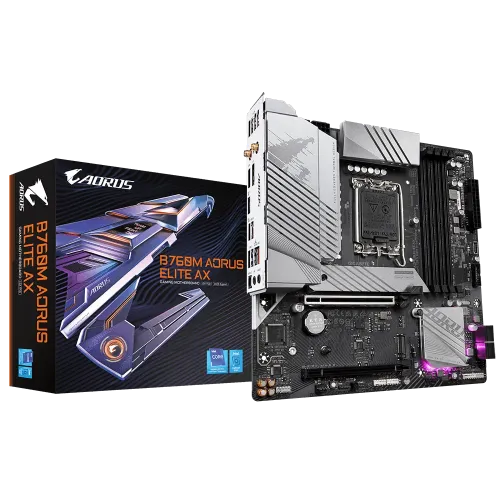

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard

Status
In Stock
4 stores
Lowest 24,000 BDT
Price Range 24,000 to 26,000 BDT Save 8%
GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard

Product Description

**Upgrade Your Build with the GIGABYTE B760M AORUS ELITE AX DDR5**

Unleash the Power of Intel LGA1700 Processors

The GIGABYTE B760M AORUS ELITE AX DDR5 is a high-performance micro ATX motherboard designed for users who demand top-tier performance and cutting-edge features. Built to support the latest 14th, 13th, and 12th Gen Intel Core processors, this motherboard offers exceptional power delivery, advanced cooling, and unparalleled connectivity options.

**Key Features and Benefits**
  • Supports DDR5 memory with speeds up to 7600(OC) MHz and a maximum capacity of 128GB
  • Two PCIe 4.0 x4 M.2 ports for next-generation storage and improved performance
  • Realtek 2.5GbE LAN chip and Intel Wi-Fi 6E AX211 for seamless network connectivity
  • Front USB-C 10Gb/s and back USB-C 20Gb/s for rapid data transfer
  • Supports up to 4 displays via HDMI and DisplayPort
**Advanced Technologies and Features**

Unbeatable Performance and Cooling

The GIGABYTE B760M AORUS ELITE AX DDR5 motherboard boasts a Twin 12*+1+1 Phases Digital VRM Solution, dual channel DDR5 memory with 4 SMD DIMMs, and XMP 3.0 compatibility. Additionally, the motherboard features a superior thermal design, M.2 Thermal Guard, and EZ-Latch Plus function for rapid release and screwless M.2 connection design.

Part ID: #CAN-01332 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Ultra Technology Gigabyte B760M Aorus Elite AX DDR5 M ATX Motherboard
In Stock 24,000 4 hours ago
Buy Now
PC House GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
In Stock 24,900 4 hours ago
Buy Now
Computer Village GIGABYTE B760M AORUS ELITE AX 13th & 12th Gen DDR5 Intel MATX Motherboard
In Stock 26,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors

Memory

Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M AORUS ELITE AX DDR5
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 128GB 7600(OC)
Graphics Output 1x HDMI, 1x DisplayPort
Features Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
Part ID: #CAN-01332 Last Updated: 1 month ago
