Product Description

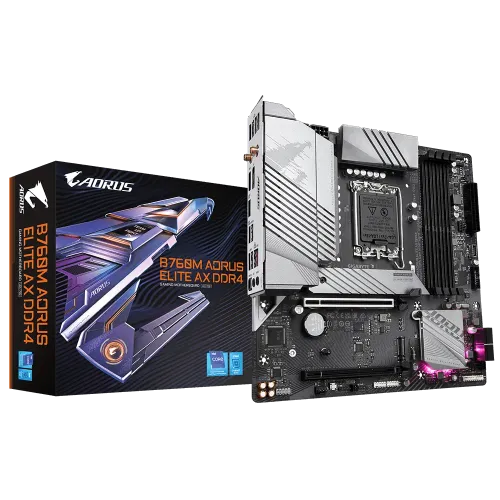

GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard
Upgrade your gaming and content creation experience with the GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard, designed specifically for PC enthusiasts and professionals who demand top-notch performance and features. This Micro ATX motherboard is perfect for building a powerful desktop PC that can handle demanding tasks with ease.
Key Features and Benefits
- Supports Intel Socket LGA 1700 and 14th, 13th and 12th Generation Intel Series Processors
- Dual-channel DDR4 memory with 4 DIMMs and XMP Memory Module support
- Next-generation storage with two PCIe 4.0 x4 M.2 connectors
- 2.5GbE LAN with Intel Wi-Fi 6E 802.11ax for fast networks
- Front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI connections
Advanced Technologies and Performance Enhancements
Enhanced Performance and Cooling
The GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard features a Twin 12*+1+1 Phases Digital VRM Solution for exceptional performance, as well as advanced thermal design and M.2 Thermal Guard to ensure VRM power stability and M.2 SSD performance. The motherboard also includes EZ-Latch Plus design for rapid release and screwless installation of M.2 connections.
Smart Fan 6 and Q-Flash Plus
The motherboard comes with Smart Fan 6, which features numerous temperature sensors and hybrid fan headers with fan stops. Additionally, Q-Flash Plus enables simple BIOS changes without the need for a new CPU, RAM, or graphics card.
Part ID: #CAN-01319
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
PC House
GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Nexus Computer
GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard
|
In Stock | 22,600 | 4 hours ago | |
|
Computer Village
GIGABYTE B760M AORUS ELITE AX DDR4 14th & 13th Gen mATX Motherboard
|
In Stock | 23,000 | 5 hours ago | |
|
TechLand BD
GIGABYTE B760M AORUS ELITE AX DDR4 13TH GEN MICRO ATX MOTHERBOARD
|
Check Stock | 23,000 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
Memory
Type
DDR4
Slots
4
Supported Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module
Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
1 x front panel audio header 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M AORUS ELITE AX DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
