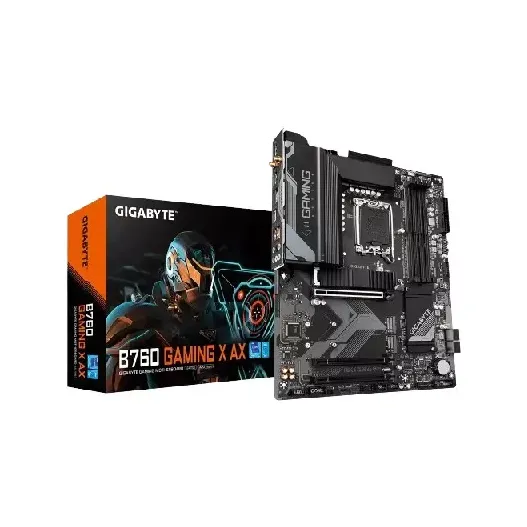

Gigabyte B760 Gaming X AX DDR5 14th Gen Intel Motherboard

Status
Check Stores
2 stores
Lowest 23,000 BDT
Price Range Single price listing
Gigabyte B760 Gaming X AX DDR5 14th Gen Intel Motherboard

Product Description

GIGABYTE B760 GAMING X AX DDR5 Motherboard

Designed for gaming enthusiasts and content creators, the GIGABYTE B760 GAMING X AX DDR5 motherboard delivers future-proof performance with its support for 14th Gen Intel Core processors and cutting-edge DDR5 memory. With its robust features and impressive capabilities, this motherboard is the perfect choice for those seeking top-tier performance in 2023 and beyond.

Key Features and Benefits

  • Supports 14th Gen Intel Core processors with LGA1700 socket
  • Up to 192 GB DDR5 RAM support with speeds ranging from 4000 MT/s to overclocked speeds like 7600 MT/s
  • Robust 8+1+1 phases digital VRM solution and fully covered thermal designs for maximum stability during intense gaming
  • Wireless connectivity options including Wi-Fi 6E and Bluetooth versions
  • Comprehensive hardware monitoring capabilities for voltage detection, temperature detection, fan speed detection, and more
  • Support for PCIe 4.0 and M.2 slots for fast storage and graphics performance

Advanced Technology and Cooling Features

The GIGABYTE B760 GAMING X AX DDR5 motherboard features a range of advanced technologies and cooling solutions to ensure optimal performance and stability. The licensed AMI UEFI BIOS provides a stable and efficient system startup, while the Intel B760 Express Chipset delivers excellent performance and stability. Additionally, the motherboard's Realtek Audio CODEC provides high-definition audio output with support for 2/4/5.1/7.1-channel audio configurations.

Part ID: #CAN-01615 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology GIGABYTE B760 GAMING X AX DDR5 13th and 12th Gen ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
TechLand BD Gigabyte B760 Gaming X AX DDR5 14th Gen Intel Motherboard
Check Stock 23,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

OS Support for Windows 11 64-bit Support for Windows 10 64-bit
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset Intel B760 Express Chipset
Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Software Norton Internet Security (OEM version) LAN bandwidth management software
Warranty 3 Years
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core Pentium Gold and Celeron Processors L3 cache varies with CPU
Other Features Wireless Communication Module: AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Back Panel Connectors: 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Speacial Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
