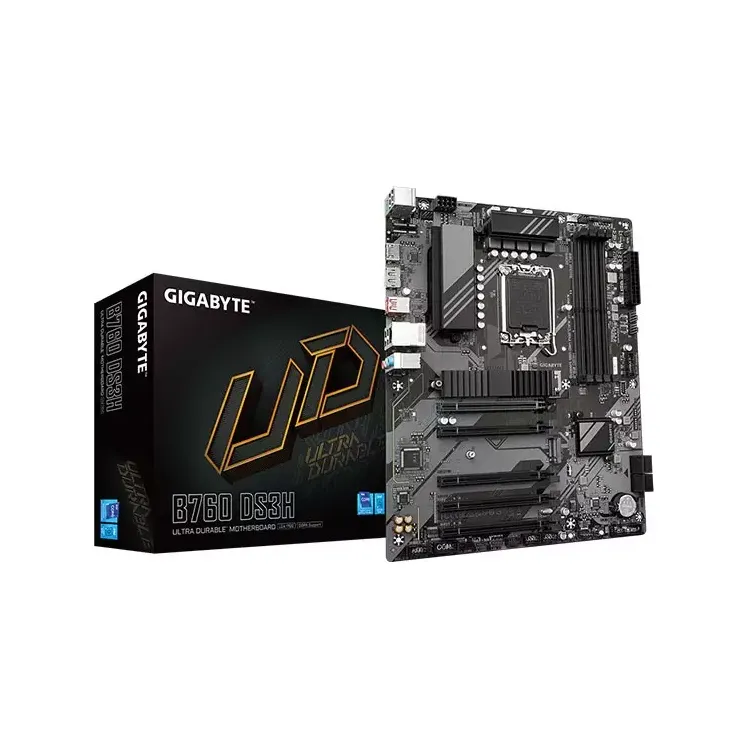

GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD

Status
In Stock
3 stores
Lowest 18,800 BDT
Price Range 18,800 to 19,500 BDT Save 4%
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD

Product Description

Unlock Your PC's Potential with the GIGABYTE B760 DS3H DDR5 Motherboard

The GIGABYTE B760 DS3H DDR5 motherboard is designed for gamers, content creators, and professionals seeking a powerful and reliable PC system that can handle demanding applications. With its cutting-edge features and robust connectivity, this motherboard offers an ideal balance between performance and affordability.

Key Features and Benefits

The GIGABYTE B760 DS3H DDR5 motherboard boasts the following key features and benefits:

  • Support for the latest 13th and 12th Gen Intel Core, Pentium Gold, and Celeron Processors in the LGA1700 socket
  • DDR5 memory support with up to four DDR5 DIMMs and a maximum memory speed of up to 7600MHz (with overclocking support)
  • PCIe 4.0 support for high-performance graphics cards and other PCIe 4.0 devices
  • Robust connectivity with multiple USB ports, including a USB Type-C port with Gen 2x2 support, and dual M.2 connectors for high-speed storage solutions
  • High-definition audio with Realtek Audio CODEC and support for S/PDIF Out
Advanced Technologies

The GIGABYTE B760 DS3H DDR5 motherboard features the Intel B760 Express Chipset, providing a stable and efficient platform for your system. Additionally, the motherboard includes an array of monitoring and control options through the iTE I/O Controller Chip, including voltage detection, temperature monitoring, and fan speed control.

Part ID: #CAN-01533 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Nexus Computer Gigabyte B760 DS3H DDR5 Motherboard
In Stock 18,800 4 hours ago
Buy Now
TechLand BD GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD
In Stock 19,500 5 hours ago
Buy Now
Ultra Technology GIGABYTE B760 DS3H DDR5 13th And 12th Gen ATX Motherboard
In Stock 19,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
USB Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI 1 x HDMI port
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset Intel® B760 Express Chipset
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Warranty 03 Years Warranty
Dimension 30.5cm x 24.4cm
Multi-GPU Yes
Form Factor ATX
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Other Features I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Software Features Norton® Internet Security (OEM version) LAN bandwidth management software Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
External I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
