Product Description

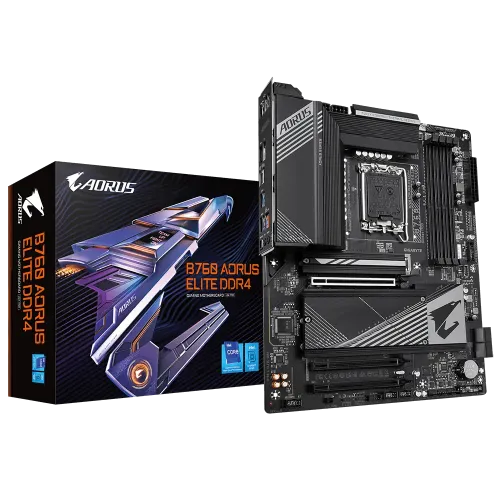

GIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard
Upgrade your desktop PC with the GIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard, designed for enthusiasts and power users who demand exceptional performance and features. This motherboard is perfect for those seeking a premium computing experience, with advanced technologies and robust connectivity options.
Key Features and Benefits
- Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
- Quad-channel DDR4 memory support, up to 128GB at 5333(OC) speeds
- Three PCIe 4.0 x4 M.2 ports for next-generation storage solutions
- Realtek 2.5GbE LAN for fast networking and expanded connectivity options
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers
Advanced Technologies and Features
Superior Thermal Design and M.2 Thermal Guard
The GIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard features a superior thermal design and M.2 Thermal Guard, which ensure VRM power stability and M.2 SSD performance. Additionally, the EZ-Latch Plus with rapid release and screwless design allows for simple M.2 connection installation.
Q-Flash Plus for Easy BIOS Updates
The Q-Flash Plus enables simple BIOS changes without the need to install the CPU, RAM, or graphics card, making it easy to update your motherboard to the latest BIOS version.
Part ID: #CAN-01321
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B760 AORUS ELITE DDR4 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
Gigabyte B760 AORUS ELITE DDR4 Motherboard
|
In Stock | 23,500 | 3 hours ago | |
|
Computer Village
GIGABYTE B760 AORUS ELITE 13th Gen & 12th Gen DDR4 ATX Motherboard
|
In Stock | 24,000 | 4 hours ago | |
|
Creatus Computer
GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD
|
Check Stock | 22,900 | 4 hours ago | |
|
TechLand BD
GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD
|
Check Stock | 24,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
Memory
Type
DDR4
Slots
4
Supported Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
VGA (s)
1x VGA
USB (s)
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
1 x front panel audio header 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760 AORUS ELITE DDR4
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR4, Max 128GB 5333(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2x M.2 slot, Realtek 2.5GbE LAN chip
Part ID: #CAN-01321
Last Updated: 1 month ago
