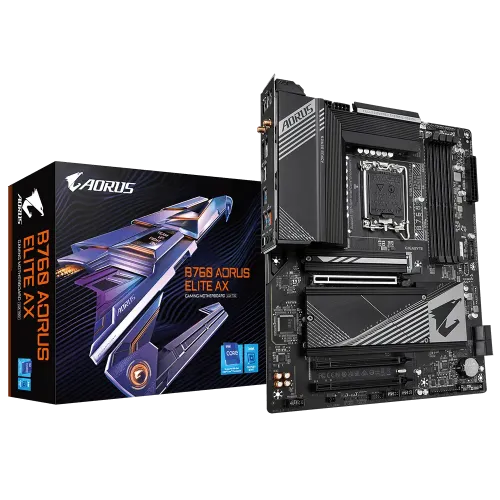

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Product Description

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Designed for power users and PC enthusiasts, the Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard offers unparalleled performance, stability, and connectivity for Intel Socket LGA 1700 processors. With its cutting-edge features and advanced technologies, this motherboard provides a seamless and efficient computing experience.

Key Features and Benefits

  • Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors
  • Quad Channel DDR5 with 4 SMD DIMMs and XMP 3.0 Memory Module support
  • 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast and reliable connectivity
  • Three PCIe 4.0 x4 M.2 Connectors for next-generation storage compatibility
  • Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers

Advanced Technologies and Features

Power Performance and Cooling

The Gigabyte B760 AORUS ELITE AX Motherboard features a Twin 12*+1+1 Phases Digital VRM Solution, providing unparalleled performance and stability. The Advanced Thermal Design and M.2 Thermal Guard maintain VRM power stability and optimal M.2 SSD performance. Additionally, the EZ-Latch Plus features M.2 Connectors with Quick Release and Screwless Design for easy hardware installation.

Connectivity and Compatibility

The motherboard offers extended connectivity options such as Rear and Front USB-C 10Gb/s, DP, and HDMI ports, catering to various connectivity needs. The Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card, offering convenience and ease of use.

Part ID: #CAN-01333 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
Check Stock 24,000 5 hours ago
Buy Now
PC House Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
Check Stock 24,650 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Memory

Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760 AORUS ELITE AX
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7600(O.C.)
Graphics Output 1x HDMI, 1x DisplayPort
Features 2.5GbE LAN & Wi-Fi 6E 802.11ax
