Product Description

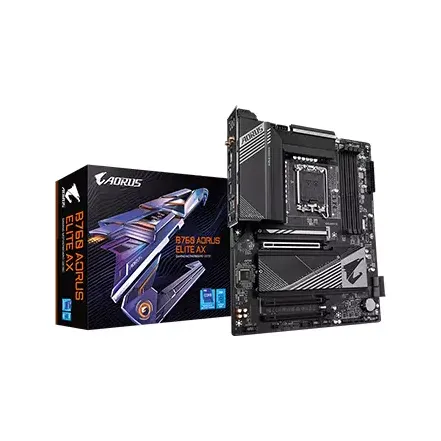

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, built on the **B760** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **26,000 ৳**, with active inventory listings tracked from TechLand BD, Creatus Computer.
Part ID: #CAN-01629
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3
WiFi
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Memory
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel B760 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Bluetooth
BLUETOOTH 5.3
Dimension
ATX Form Factor; 30.5cm x 24.4cm
Form Factor
ATX Form Factor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
External I/O Ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01629
Last Updated: 2 days ago
Specification rts 1 X USB Type-C® Port, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 4 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks WiFi WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands DIMENSIONS ATX Form Factor; 30.5cm X 24.4cm Form Factor ATX Form Factor BIOS 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 HDMI 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3 Warranty 3 Years GIGABYTE B760 AORUS ELITE AX 13TH GEN ATX MOTHERBOARD The Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard is a high-performance motherboard designed to support the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. With its LGA1700 socket and Intel® B760 Express Chipset, this motherboard provides excellent compatibility and powerful performance for demanding tasks and gaming.The motherboard supports DDR5 memory modules with speeds up to 7600MHz (O.C.), offering fast and efficient data transfer for smooth multitasking and gaming experiences. With four DDR5 DIMM sockets, it can accommodate up to 192GB of system memory in a dual-channel configuration. It supports both ECC and non-ECC memory modules and offers support for Extreme Memory Profile (XMP) for easy overclocking.Integrated Intel® HD Graphics with HDMI 2.0 and DisplayPort 1.2 support provide crisp and high-resolution visuals. The motherboard also features a Realtek® Audio CODEC that supports high-definition audio output, offering immersive sound quality for gaming and multimedia applications.For networking, the motherboard includes a Realtek® 2.5GbE LAN chip, providing fast and reliable Ethernet connectivity. Additionally, it offers wireless communication options with either an Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE module, supporting various Wi-Fi standards and delivering high-speed wireless connections.The motherboard provides multiple expansion slots, including a PCI Express x16 slot running at x16 for optimal graphics card performance. It also offers several storage options, including M.2 connectors for high-speed SSD support and SATA 6Gb/s connectors for traditional storage devices. RAID support is available for SATA storage devices.A variety of USB ports, including USB Type-C® and USB 3.2 Gen 2, provide fast data transfer and connectivity options for peripherals. The motherboard also includes internal headers for addressable LED strips and RGB LED strips, allowing users to customize their system's lighting effects.With a comprehensive set of internal I/O connectors and back panel connectors, the motherboard offers versatile connectivity options for various devices and peripherals. It features an iTE® I/O Controller Chip for efficient hardware monitoring, including voltage, temperature, and fan speed detection.Additional features of this motherboard include GIGABYTE Control Center (GCC) support for convenient system management, Q-Flash and Q-Flash Plus for easy BIOS updates, and bundled software such as Norton® Internet Security for added security.The Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard follows the ATX form factor, ensuring compatibility with a wide range of PC cases. Its dimensions of 30.5cm x 24.4cm make it suitable for standard-sized ATX cases.Overall, the Gigabyte B760 AORUS ELITE AX 13th Gen ATX Motherboard offers a feature-rich and high-performance platform for building a powerful desktop PC that can handle demanding applications, gaming, and multimedia tasks...
