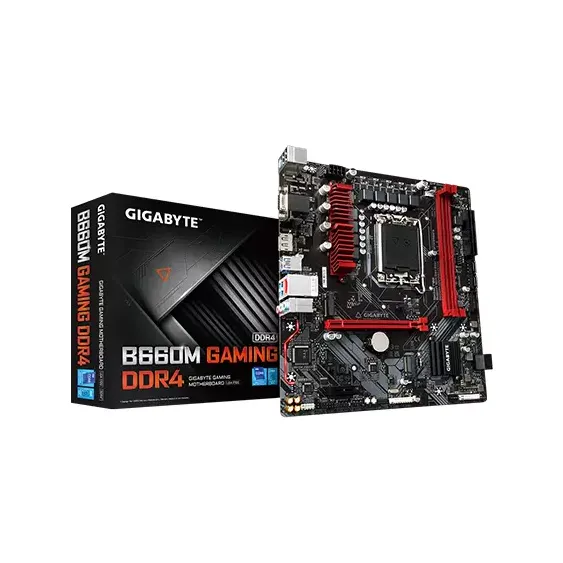

GIGABYTE B660M GAMING DDR4 12TH GEN MICRO ATX MOTHERBOARDThe GIGABYTE B660M GAMING DDR4 12th Gen Micro ATX Motherboard is a powerful and feature-rich motherboard designed to support Intel's 12th Generation Core i9, i7, and i5 processors with LGA1700 socket. It offers a wide range of cutting-edge features and high-quality components to deliver excellent performance for gaming, productivity, and multimedia tasks.One of the notable features of this motherboard is its Intel B660 Express Chipset, which provides a solid foundation for seamless system operation and stable performance. The motherboard supports DDR4 memory modules with speeds of up to 3200MHz, and it can accommodate up to 128GB of RAM across four DDR DIMM sockets, supporting both ECC and non-ECC memory configurations.In terms of connectivity, the external I/O ports offer a comprehensive selection of options, including two USB 2.0/1.1 ports, one PS/2 keyboard/mouse port, one D-Sub port, one HDMI port, two DisplayPorts, three USB 3.2 Gen 1 ports, one USB Type-C port with USB 3.2 Gen 2 support, one RJ-45 port, and three audio jacks. The HDMI and DisplayPorts support high-resolution displays, up to 4096x2160@60Hz and 4096x2304@60Hz, respectively, providing exceptional visuals for gaming and multimedia content.Internally, the motherboard offers multiple headers for various components, such as CPU and system fan headers, addressable LED strip header, RGB LED strip header, and USB headers for both 3.2 Gen 1 and 2.0/1.1 ports. Additionally, it has M.2 Socket 3 connectors for high-speed PCIe 4.0 x4/x2 SSDs and SATA 6Gb/s connectors for traditional storage devices, supporting RAID 0, RAID 1, RAID 5, and RAID 10 configurations.The GIGABYTE B660M GAMING motherboard also features Realtek 2.5GbE LAN chip, providing fast and reliable wired network connectivity with speeds of up to 2.5 Gbps. This is especially beneficial for online gaming and data-intensive applications.The motherboard boasts an immersive audio experience through the Realtek Audio CODEC with High Definition Audio support, offering 2/4/5.1/7.1-channel audio output for crystal-clear sound quality.To ensure ease of use and system maintenance, the motherboard is equipped with Q-Flash Plus, reset buttons, and Clear CMOS jumper. The BIOS is powered by a licensed AMI UEFI BIOS, providing a user-friendly interface with support for PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.With a Micro ATX form factor measuring 24.4cm x 24.4cm, this motherboard is suitable for smaller PC cases, making it an excellent choice for compact gaming rigs or versatile workstations.Features:Supports 13th/12th Gen Intel® Core™ Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​​6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​Fast 2.5 GbE GAMING LAN with Bandwidth Management​​Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile ConnectionsHigh Quality Audio Capacitors and Audio Noise Guard​RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​.GIGABYTE B660M GAMING DDR4 12TH GEN MICRO ATX MOTHERBOARD Review:
