Product Description
Next-Gen Performance for AMD Enthusiasts

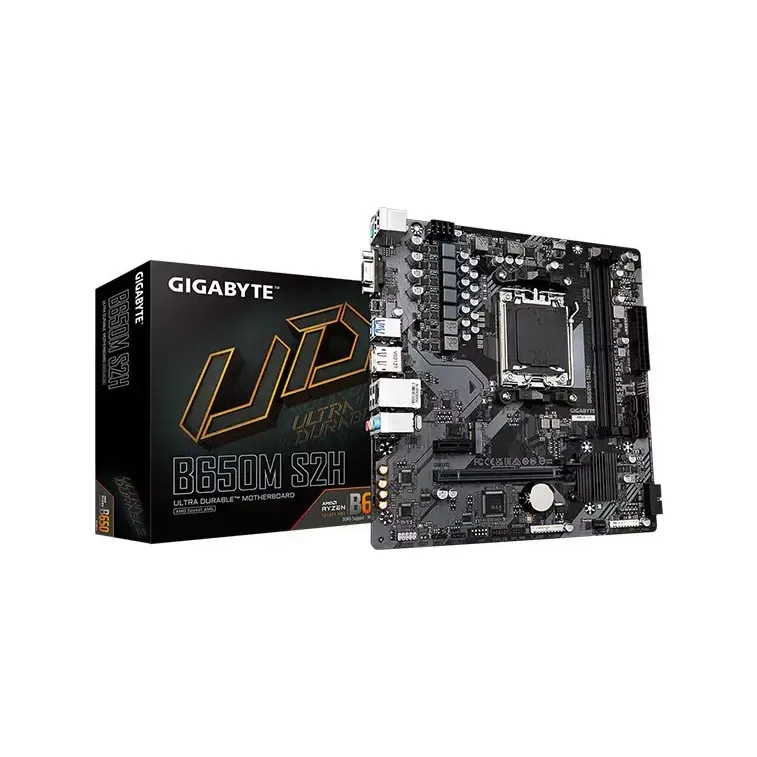

The GIGABYTE B650M S2H DDR5 AM5 Micro-ATX Motherboard is designed to deliver exceptional performance and compatibility for gamers, content creators, and PC enthusiasts who demand reliable performance on the AMD AM5 platform. With its advanced DDR5 memory support, high-speed storage options, and versatile display outputs, this motherboard is the perfect choice for building compact yet powerful AMD systems.
Key Features and Benefits
- Support for AMD Ryzen 7000 Series Processors and future-ready performance
- Advanced DDR5 memory support with speeds up to DDR5 6400(OC) and capacities up to 96GB
- High-speed storage options with one PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports
- Support for RAID 0, 1, and 10 configurations for fast and secure data management
- Integrated DisplayPort 1.4, HDMI, and D-Sub outputs supporting up to 4K resolution
Advanced Technologies and Performance
The GIGABYTE B650M S2H DDR5 AM5 Micro-ATX Motherboard features advanced cooling with Smart Fan 6 and supports Q-Flash Plus for easy BIOS updates. This motherboard also supports AMD EXPO and XMP profiles for easy overclocking and enhanced performance. With its support for ultra-fast DDR5 memory, PCIe 4.0, and NVMe SSDs, it ensures faster data transfer and smooth multitasking.
Part ID: #CAN-01532
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
GIGABYTE B650M S2H AMD AM5 DDR5 MICRO ATX MOTHERBOARD
|
In Stock | 13,500 | 4 hours ago | |
|
Creatus Computer
GIGABYTE B650M S2H DDR5 AM5 Micro-ATX Motherboard
|
In Stock | 14,000 | 4 hours ago | |
|
Nexus Computer
Gigabyte B650M S2H DDR5 Motherboard
|
In Stock | 14,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI port
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Chipset
AMD B650
Graphics
Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Warranty
03 Years Warranty
Dimension
23.0cm x 22.5cm
Form Factor
Micro ATX
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Other Features
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Software Features
Norton Internet Security (OEM version) LAN bandwidth management software Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper iTE® I/O Controller Chip
