Product Description

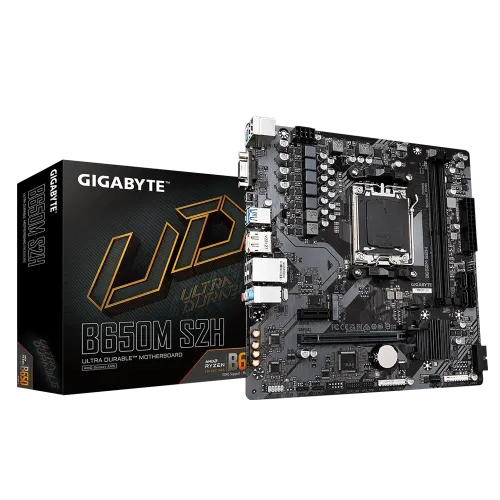

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
Take your gaming and content creation to the next level with the GIGABYTE B650M S2H AM5 Micro-ATX Motherboard. Designed to meet the demands of today's computing, this high-performance motherboard is perfect for enthusiasts and professionals looking for exceptional performance and a smooth computing experience.
Key Features and Benefits
- Supports AMD Ryzen 8000 & 7000 Series Processors for Socket AM5
- 2 x DDR5 6400(OC) Max. 96 GB memory capacity for seamless multitasking
- Realtek GbE LAN chip for fast and consistent internet access
- Multiple display outputs, including DP, HDMI, and D-Sub, for versatile display options
- PCIe 4.0 x4 M.2 Connector for high-speed storage options and lightning-fast data access
Advanced Technologies and Features
Smart Fan 6 Technology
The GIGABYTE B650M S2H Motherboard features Smart Fan 6 technology, which includes multiple temperature sensors and hybrid fan headers with a FAN STOP feature. This allows for precise and efficient cooling, adjusting fan speeds based on the temperature to maintain an optimal balance between performance and noise.
Q-Flash Plus and GIGABYTE Control Center
This motherboard also features Q-Flash Plus and GIGABYTE Control Center, which enable convenient and efficient BIOS updates without the need to install the CPU, memory, or graphics card. This simplifies the process of keeping your system up to date with the latest firmware.
Part ID: #CAN-00999
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
|
In Stock | 13,000 | 2 hours ago | |
|
Computer Village
GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
|
In Stock | 13,200 | 2 hours ago | |
|
Skyland BD
GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
|
In Stock | 13,200 | 2 hours ago | |
|
PC House
GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
|
In Stock | 13,900 | 2 hours ago | |
|
Star Tech
GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
|
In Stock | 14,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 96 GB (48 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
D-Sub (s)
1 x D-Sub port
USB (s)
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M S2H
Supported CPU
Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported Memory
2 x DDR5 6400(OC) Max. 96GB
Graphics Output
1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Features
Realtek GbE LAN chip
Part ID: #CAN-00999
Last Updated: 4 hours ago
