Product Description

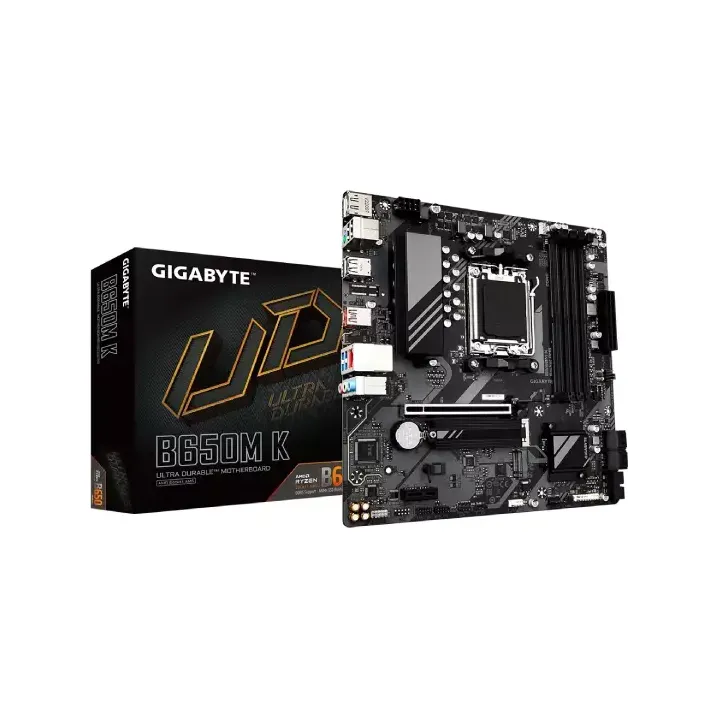

Engineered by Gigabyte, this motherboard is designed for **AM5** socket processors, featuring a **MICRO-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **13,999 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01540
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Chipset
AMD B650
Graphics
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Warranty
3 Years
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Other Features
Expansion Slots: - CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 - Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Back Panel Connectors: - 1 x DisplayPort - 1 x HDMI port - 4 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x USB 3.2 Gen 2 Type-A port (red) - 1 x USB Type-C® port, with USB 3.2 Gen 2 support - 1 x Q-Flash Plus button - 1 x RJ-45 port - 2 x USB 3.2 Gen 1 ports - 3 x audio jacks I/O Controller: iTE® I/O Controller Chip - H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control Operating System - Support for Windows 11 64-bit - Support for Windows 10 64-bit
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Software Features
Norton® Internet Security (OEM version) LAN bandwidth management software
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01540
Last Updated: 2 days ago
