Product Description

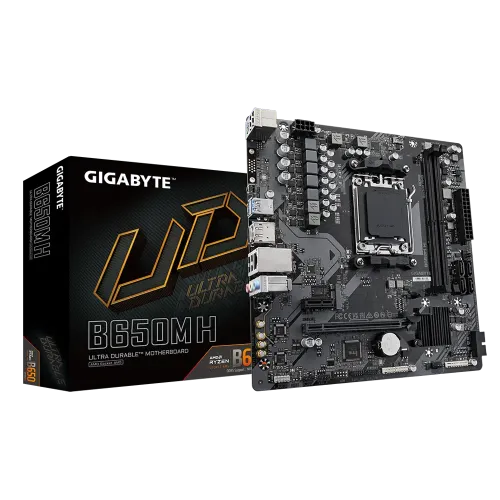

Unlock Unparalleled Performance with the GIGABYTE B650M H AM5 Micro-ATX Motherboard
Designed for gamers, content creators, and professionals seeking a reliable and efficient system build, the GIGABYTE B650M H AM5 Micro-ATX Motherboard is engineered to support AMD's latest Ryzen 7000, 8000, and 9000 series processors, offering unparalleled processing power and multitasking capabilities.
Key Features and Benefits
- Support for AMD Ryzen 7000, 8000, and 9000 series processors for Socket AM5
- Dual Channel DDR5 memory through 2 SMD DIMMs, compatible with AMD EXPO and Intel XMP memory modules
- PCIe 4.0 x16 mode for graphics cards and NVMe SSDs
- Gigabit Ethernet LAN for reliable and fast network connectivity
- DisplayPort and HDMI outputs for versatile connectivity options
Exclusive Technologies and Features
The B650M H boasts several cutting-edge technologies and features that set it apart from the competition. Some of these include:
Smart Fan 6 Technology for optimal cooling and minimal noise, featuring multiple temperature sensors and hybrid fan headers.
Q-Flash Plus for easy BIOS updates without the need to install a CPU, memory, or graphics card, simplifying system maintenance and upgrades.
Support for GIGABYTE Control Center (GCC) for centralized system monitoring and control.
3 years of manufacturing warranty for peace of mind and protection against defects.
Part ID: #CAN-00997
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
GIGABYTE B650M H AM5 Micro-ATX Motherboard
|
In Stock | 12,000 | 2 hours ago | |
|
Skyland BD
GIGABYTE B650M H AM5 Micro-ATX Motherboard
|
In Stock | 13,400 | 2 hours ago | |
|
Creatus Computer
GIGABYTE B650M H AM5 Micro-ATX Motherboard
|
In Stock | 13,499 | 2 hours ago | |
|
Nexus Computer
GIGABYTE B650M H AM5 Micro-ATX Motherboard
|
In Stock | 13,800 | 2 hours ago | |
|
Star Tech
GIGABYTE B650M H AM5 Micro-ATX Motherboard
|
In Stock | 13,900 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics
supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M H
Supported CPU
Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
Supported Memory
2 x DDR5 6400(OC) Max. 96GB
Graphics Output
2 x DisplayPort, 1 x HDMI port
Features
1 x DisplayPort, 1 x HDMI
