Product Description
Unleash the Power of Your AM5 Build

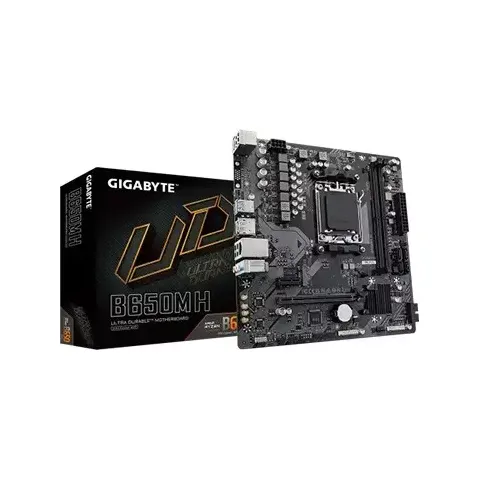

Designed for enthusiasts and professionals, the GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard is the perfect foundation for your next-generation Ryzen 7000 series system. With its robust feature set and exceptional performance, this motherboard is ideal for content creators, gamers, and anyone who demands a seamless computing experience.
Key Features and Benefits:
- Supports AMD Ryzen 7000 series processors (AM5 socket)
- DDR5 memory support with speeds up to 12800 MT/s
- High-quality audio capacitors and a dedicated audio processor for immersive sound
- Support for up to 6x SATA III ports and 2x M.2 slots for storage expansion
- Comprehensive cooling capabilities with high-quality heatsinks and fan headers
Advanced Technologies and Innovations:
Experience the cutting-edge features of the GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard, including:
PCIe 5.0 and USB 3.2 Gen 2: Enjoy blazing-fast storage and connectivity with the latest PCIe 5.0 and USB 3.2 Gen 2 standards.
Smart Fan 6 Technology: Monitor and control your system's temperature and fan speeds with precision and ease, ensuring optimal cooling performance.
Part ID: #CAN-01509
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard
|
In Stock | 13,699 | 4 hours ago | |
|
Computer Village
GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard
|
In Stock | 14,200 | 4 hours ago | |
|
PCB Store
GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard
|
Check Stock | 13,700 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI
Jack
3 x audio jacks
Port
1 x DisplayPort
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
2 x DIMM
Chipset
AMD B650
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Graphics
supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
I/O Port
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort
Warranty
3 Years
Form Factor
mATX
Memory Size
supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Memory Type
DDR5
PCI Card Slot
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Other Features
RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Software Features
Norton Internet Security (OEM version) LAN bandwidth management software
Speacial Features
TPM:1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Memory Specifications
6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
