Product Description

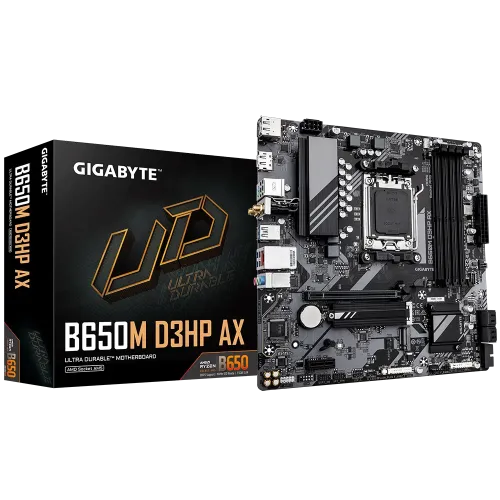

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
The GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is designed for enthusiasts and professionals seeking a powerful and feature-rich platform for their high-performance computing needs. This motherboard offers seamless performance for a wide range of applications, from gaming and content creation to professional workstations.
Key Features and Performance Highlights- Support for AMD Ryzen 8000/ 7000 Series Processors for Socket AM5, delivering exceptional performance and power efficiency.
- 4x DDR5 slots with speeds up to 7600MHz, supporting up to 192GB of RAM for smooth multitasking and lightning-fast response.
- Realtek 2.5GbE LAN and Realtek Wi-Fi 6E RTL8852CE for fast and dependable network connections.
- PCIe 4.0 x4 M.2 Connector for SuperSpeed storage options and fast data transmission speeds.
- Dual Channel DDR5 support with AMD EXPO & Intel XMP Memory Module Support for improved memory speed and bandwidth.
The GIGABYTE B650M D3HP AX motherboard features several proprietary technologies and performance enhancements, including:
- 5+2+2 Phases Digital VRM Solution for unmatched performance and dependable power supply to components.
- EZ-Latch PCIe x16 Slot with Quick Release Design for simplified hardware installation and removal.
- Smart Fan 6 with various temperature sensors and hybrid fan headers with FAN STOP technology for intelligent cooling.
- Q-Flash Plus for easy BIOS updates without requiring CPU, RAM, or graphics card installation.
Part ID: #CAN-01031
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
|
In Stock | 18,500 | 3 hours ago | |
|
Computer Village
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
|
In Stock | 18,900 | 4 hours ago | |
|
Nexus Computer
Gigabyte B650M D3HP AX AMD DDR5 Motherboard
|
In Stock | 19,200 | 3 hours ago | |
|
Star Tech
GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
|
In Stock | 19,300 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
192GB
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1x HDMI
Display Port (s)
2 x DisplayPorts
USB (s)
CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x Audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M D3HP AX
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 192GB, 7600(OC)
Graphics Output
2x Display Port, 1 x HDMI
Features
Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE
Part ID: #CAN-01031
Last Updated: 1 month ago
