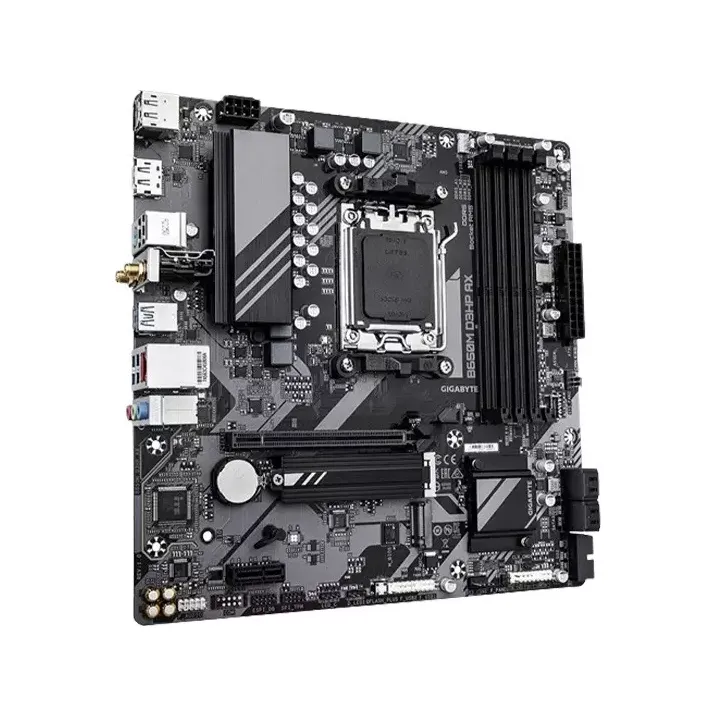

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard

Designed for compact gaming rigs and multimedia setups, the Gigabyte B650M D3HP AX AM5 AMD M-ATX motherboard offers a perfect blend of performance and portability. With its compact Micro ATX form factor and robust features, this motherboard is an excellent choice for budget-conscious builders and enthusiasts alike.

Key Features and Benefits

Supports AMD Ryzen 7000 and Ryzen 8000 Series processors for exceptional performance in gaming, content creation, and other computing tasks.
Four DDR5 DIMM sockets support up to 192GB of system memory, facilitating smooth multitasking and seamless operation of memory-intensive applications.
Integrated graphics processor with AMD Radeon Graphics support enables high-resolution visuals at up to 3840x2160@144Hz, with support for triple-display setups.
Realtek 2.5GbE LAN and Realtek Wi-Fi 6E module provide high-speed wired and wireless networking capabilities.
Flexible storage options include M.2 connectors supporting PCIe 4.0 SSDs and SATA connectors with RAID support for both NVMe and SATA storage devices.

Advanced Technologies and Features

AMD B650 Chipset and Integrated Graphics

The Gigabyte B650M D3HP AX AM5 AMD M-ATX motherboard is built around the AMD B650 chipset, delivering stable and reliable performance with support for advanced features like PCIe 4.0 and DDR5 memory. The integrated graphics processor with AMD Radeon Graphics support enables high-resolution visuals and versatile connectivity options, including two DisplayPorts and one HDMI port.

Enhanced Connectivity and Performance

The motherboard features a comprehensive array of USB ports, including USB Type-C ports, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports, ensuring seamless connectivity for peripherals and external devices. The Realtek Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations, while the internal I/O ports, including fan headers and RGB LED strip headers, allow users to customize their system's aesthetics and cooling performance.

Part ID: #CAN-01519 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Creatus Computer Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard	In Stock	19,000	5 hours ago	Buy Now
Ultra Technology Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard	In Stock	19,000	4 hours ago	Buy Now
TechLand BD Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard	In Stock	19,300	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Memory Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Chipset AMD B650

Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus

Graphics Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)

Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty 3 YEAR

Connector 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks

Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Other Features I/O Controller - iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Wireless Connectivity Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
