Product Description

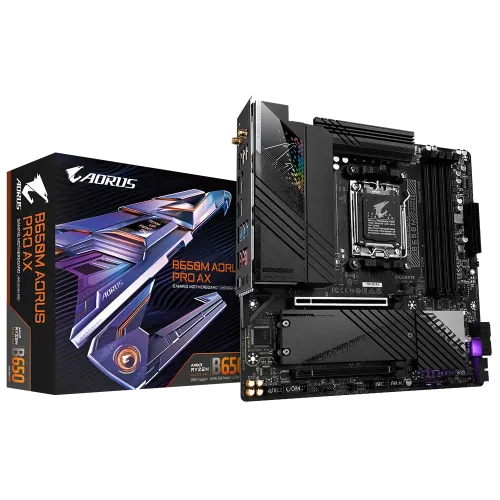

GIGABYTE B650M AORUS PRO AX DDR5 AMD AM5 Micro-ATX Motherboard
Unleash Your Gaming Potential
Designed for the most demanding gamers and content creators, the GIGABYTE B650M AORUS PRO AX Motherboard is engineered to deliver unparalleled performance, power, and connectivity. With its robust feature set and cutting-edge technology, this motherboard is the perfect foundation for your next-generation gaming PC or content creation workstation.
Key Features and Benefits
- Supports AMD Ryzen 8000 & 7000 Series Processors for Socket AM5
- 4x DDR5 memory slots, supporting up to 128GB of memory and speeds of up to 6666(OC)
- Realtek 2.5GbE LAN and AMD Wi-Fi 6E for lightning-fast networking
- 1x DisplayPort and 1x HDMI output for stunning visual fidelity
- Supports PCIe 4.0 and PCIe 5.0 for blazing-fast storage and graphics performance
Advanced Technology and Features
The GIGABYTE B650M AORUS PRO AX Motherboard features a range of innovative technologies and features that deliver exceptional performance, cooling, and connectivity. These include:
Smart Fan 6 with advanced cooling features and support for up to 24W of power
M.2 Thermal Guard that prevents throttling and bottlenecks from high-speed M.2 SSDs
2X Copper PCBs design for improved thermal efficiency and reduced component temperature
Q-Flash and Q-Flash Plus for easy firmware updates and BIOS recovery
Part ID: #CAN-01197
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B650M AORUS PRO AX DDR5 AMD AM5 Micro-ATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1 x DisplayPorts
USB (s)
CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back pane
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
2 x Audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M AORUS PRO AX
Supported CPU
Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 128GB, 6666(OC)
Graphics Output
1x Display Port, 1 x HDMI
Features
Realtek 2.5GbE LAN & AMD Wi-Fi 6E
Part ID: #CAN-01197
Last Updated: 1 month ago
