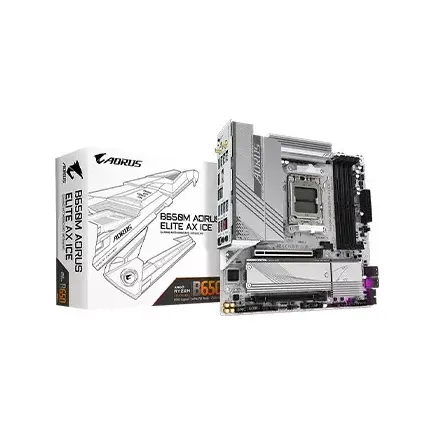

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard

Status
In Stock
3 stores
Lowest 28,500 BDT
Price Range 28,500 to 29,500 BDT Save 3%
Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard

Product Description

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard: Unleash Your Gaming Potential

The Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard is specifically designed for gamers and creators seeking advanced features in a compact Micro-ATX form factor. With its robust performance and versatile features, this motherboard offers a future-ready platform for high-performance computing and seamless multitasking.

Key Features and Benefits

The Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard boasts the following features and benefits:

  • Supports AMD Ryzen 7000, 8000, and 9000 Series Processors for future-ready performance
  • DDR5 memory with speeds up to 8000 MT/s and dual-channel memory architecture for high-speed memory performance
  • Realtek Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless networking and connectivity
  • Dual M.2 slots with PCIe 5.0 and PCIe 4.0 compatibility for ultra-fast NVMe SSDs
  • Supports high-resolution visuals through integrated graphics with HDMI 2.1 and DisplayPort 1.4 connections
Proprietary Technologies and Performance Enhancements

The Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard also features several proprietary technologies and performance enhancements, including:

Realtek High Definition Audio for rich, immersive sound experiences, and Q-Flash Plus for easy BIOS updates. Additionally, this motherboard supports AMD EXPO and XMP profiles for optimized memory overclocking, and comes with a durable build, extensive RGB and LED strip headers.

Part ID: #CAN-01498 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
In Stock 28,500 4 hours ago
Buy Now
TechLand BD Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
In Stock 28,800 5 hours ago
Buy Now
Skyland BD Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
In Stock 29,500 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Memory Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Chipset AMD B650
Storage 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
I/O Port 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Warranty 03 years
Wireless Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01498 Last Updated: 1 month ago
