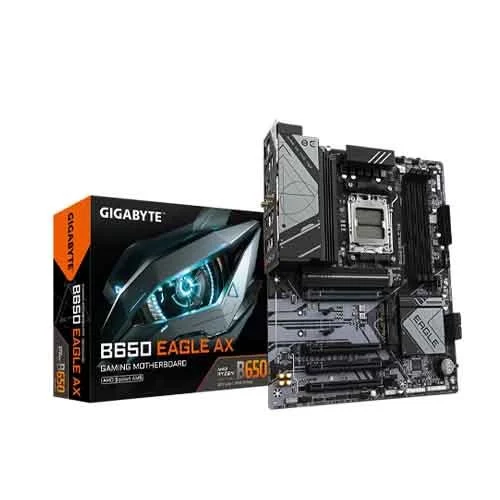

Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Status
In Stock
2 stores
Lowest 25,999 BDT
Price Range 25,999 to 26,000 BDT Save 0%
Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Product Description

Gigabyte B650 EAGLE AX Motherboard: Unleash Your Gaming and Content Creation Potential

Designed for power users, gamers, and content creators, the Gigabyte B650 EAGLE AX motherboard offers an unparalleled level of performance, flexibility, and customization options. With its robust features and cutting-edge technology, this motherboard is the perfect foundation for building a high-performance desktop system that meets your most demanding needs.

Key Features and Benefits
  • AMD Socket AM5 Compatibility: Supports both AMD Ryzen 7000 Series and Ryzen 8000 Series processors for a wide range of CPU options.
  • PCIe 4.0 and PCIe 3.0 Expansion Slots: Includes a PCIe 4.0 x16 slot integrated in the CPU for high-speed data transfer and gaming performance.
  • Comprehensive Connectivity: Features a diverse array of USB ports, including USB 3.2 Gen 2 Type-A and Type-C ports, for fast data transfer and device compatibility.
  • Integrated Graphics Processor: Equipped with DisplayPort 1.4 and HDMI 2.1 ports for stunning visuals at resolutions up to 3840x2160@144Hz and 4096x2160@60Hz.
  • Realtek Wi-Fi 6E Module: Offers high-speed wireless connectivity and seamless device pairing for a modern computing experience.
Proprietary Technologies and Features

Advanced BIOS Features: Utilizes a licensed AMI UEFI BIOS with a user-friendly interface, advanced overclocking options, and system management tools for fine-tuning performance.

RGB Lighting and Fan Headers: Features multiple addressable RGB Gen2 LED strip headers and fan headers for customizable aesthetics and optimized cooling performance.

Bundled Software: Includes Norton Internet Security (OEM Version) and LAN Bandwidth Management Software for essential security and network optimization tools.

Part ID: #CAN-01899 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Gigabyte B650 EAGLE AX ATX AM5 Motherboard
In Stock 26,000 4 hours ago
Buy Now
Ultra Technology Gigabyte B650 EAGLE AX AM5 ATX Motherboard
In Stock 26,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Others Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Memory

Supported Memory Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Connector & Ports

USB (s) CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper

Software

Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit

External Features

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.

Others

Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Warranty 3-Year Warranty
Part ID: #CAN-01899 Last Updated: 1 month ago
