Product Description

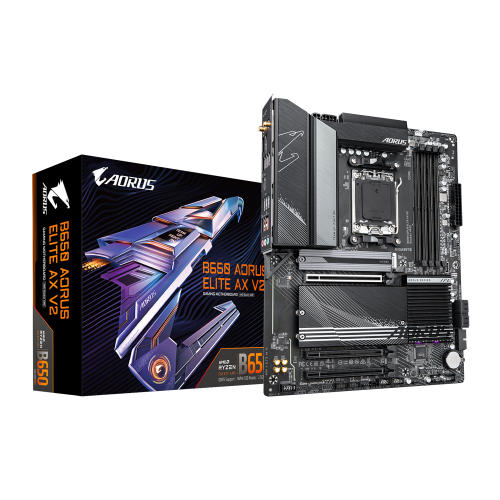

GIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard
Unleash Unmatched Performance with the GIGABYTE B650 AORUS ELITE AX V2
Designed for gamers, content creators, and PC enthusiasts, the GIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard is engineered to deliver exceptional performance, reliability, and durability. With its cutting-edge features and advanced technologies, this motherboard is the perfect choice for building a high-performance gaming PC or content creation workstation.
Key Features and Benefits
- Supports AMD Ryzen 8000 and 7000-series processors for socket AM5
- 4x DDR5 slots supporting up to 192GB memory
- Integrated 2.5G LAN and Wi-Fi 6E for fast networking
- 3x addressable RGB Gen2 LED strip headers for customizable lighting
- Smart Fan 6 with PWM and DC fan support for optimal cooling
Advanced Technologies and Features
Power and Cooling
The GIGABYTE B650 AORUS ELITE AX V2 motherboard features a direct Twin 12+2+2 Phases Digital VRM Solution, providing the highest quality components for stable and efficient power delivery. The motherboard also comes with advanced thermal heatsinks to improve thermal efficiency and prevent throttling from high-speed M.2 SSDs.
Smart Fan 6
The Smart Fan 6 system contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan header supports PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.
Part ID: #CAN-01365
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset
AMD B650
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
M.2 Socket
3
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Maximum Memory
192GB
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1 x DisplayPorts
USB (s)
CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
3 x Audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650 AORUS ELITE AX V2
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 192GB, 8000(OC)
Graphics Output
1x Display Port, 1 x HDMI
Features
Realtek 2.5GbE LAN & AMD Wi-Fi 6E
Part ID: #CAN-01365
Last Updated: 1 month ago
