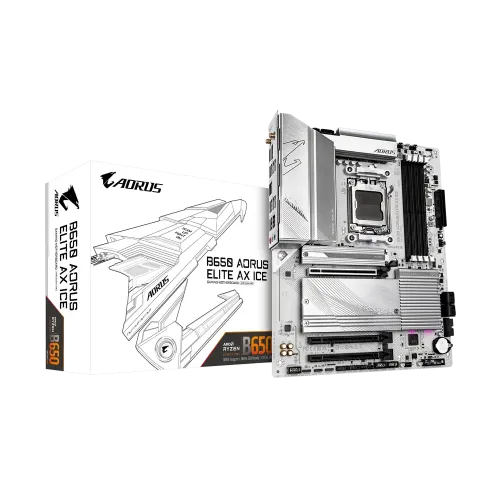

GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard

Status
In Stock
1 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard

Product Description

Unleash Your Gaming Potential with the GIGABYTE B650 AORUS ELITE AX ICE Motherboard

The GIGABYTE B650 AORUS ELITE AX ICE motherboard is designed for gaming enthusiasts and power users who demand superior performance, efficient thermal management, and robust connectivity options. Built to support the latest AMD Ryzen 7000 and 8000 series processors, this motherboard is the perfect choice for those who want to build a high-performance system that can handle the demands of contemporary computing and gaming.

Key Features and Benefits
  • Support for AMD Ryzen 8000 and 7000 series processors, with PCIe 4.0 and PCIe 5.0 support for storage and graphics cards
  • Four DDR5 DIMM slots with support for up to 192GB of memory, and AMD EXPO and Intel XMP memory modules
  • Two PCIe 4.0 x4 M.2 and one PCIe 5.0 x4 M.2 connections for storage, with M.2 Thermal Guard for thermal throttling prevention
  • Wi-Fi 6E and 2.5GbE LAN for fast wired and wireless connections, with multiple temperature sensors and hybrid fan headers for effective thermal management
  • Support for Q-Flash Plus for easy BIOS updates, and a wide range of connectivity options including HDMI, DisplayPort, and front and back USB-C ports
Proprietary Technologies and Features

The GIGABYTE B650 AORUS ELITE AX ICE motherboard features a number of proprietary technologies and features that enhance its performance and functionality. These include the Twin 12+2+2 Phases Digital VRM Solution, which provides stable and efficient power to the CPU, and the M.2 Thermal Guard, which prevents thermal throttling of 25110 M.2 SSDs. The motherboard also features the EZ-Latch design for fast and easy installation of the PCIe x16 slot and M.2 connections.

Perfect for Building a High-Performance System

The GIGABYTE B650 AORUS ELITE AX ICE motherboard is the perfect choice for those who want to build a high-performance system that can handle the demands of contemporary computing and gaming. With its superior thermal design, robust connectivity options, and support for the latest AMD Ryzen processors, this motherboard is a great alternative for those who want to assemble a system that can keep up with their needs.

Part ID: #CAN-01344 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Maximum Memory up to 192 GB (48 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model B650 AORUS ELITE AX ICE
Supported CPU Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 192GB, 6666(OC)
Graphics Output 1x Display Port, 1 x HDMI
Features Realtek 2.5GbE LAN & AMD Wi-Fi 6E
