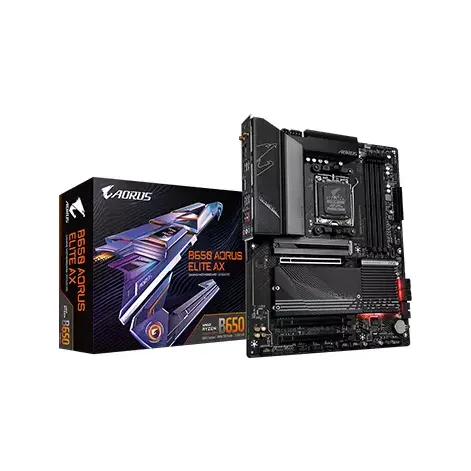

GIGABYTE B650 AORUS ELITE AX AM5 AMD MOTHERBOARD

Unlock unparalleled performance with the GIGABYTE B650 AORUS ELITE AX AM5 AMD MOTHERBOARD, designed for gamers and content creators who demand the best. This motherboard is engineered to provide a seamless and efficient computing experience, boasting cutting-edge features and advanced technologies.

Key Features and Benefits

Next-Generation Storage: Supports up to 3 M.2 ports, including 1 PCIe 5.0 X4 and 2 PCIe 4.0 X4, for lightning-fast storage and data transfer.
DDR5 Support: Enjoy speeds of up to 5200MHz with a BIOS update, ensuring a significant boost in memory performance.
Wireless Connectivity: Experience Gigabit wireless performance with the latest 802.11ax Wi-Fi 6E technology, featuring a dedicated 6GHz band.
Advanced Power Solution: Equipped with a 14+2+1 phase digital VRM solution for stable and efficient power delivery to the CPU.
High-Quality Components: Built with the highest quality components to ensure maximum overclocking performance and reliability.

Proprietary Technologies and Performance Highlights

Advanced Power Solution and VRM Design: The GIGABYTE AORUS Series Motherboard features a best-in-class VRM design, ensuring maximum turbo boost and overclocking performance of AMD's new generation CPU.

Wireless Solution 802.11ax Wi-Fi 6E: Enables Gigabit wireless performance, providing a smooth video streaming experience, better gaming performance, fewer dropped connections, and speeds up to 2.4Gbps.

Bluetooth 5: Offers 4X range over BT 4.2 and faster transmission, ensuring a reliable and efficient wireless connection.

Part ID: #CAN-01639 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Ultra Technology GIGABYTE B650 AORUS ELITE AX AM5 AMD MOTHERBOARD	Check Stock	Call for Price	4 hours ago	Buy Now
TechLand BD GIGABYTE B650 AORUS ELITE AX AM5 AMD MOTHERBOARD	Check Stock	33,500	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

WiFi AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Slots 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Memory Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

Chipset AMD B650

Graphics Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

Warranty 3 years

Bluetooth BLUETOOTH 5.3

Dimension 30.5cm x 24.4cm

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Supported CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Supported Storage 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

External I/O Ports 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
