Product Description

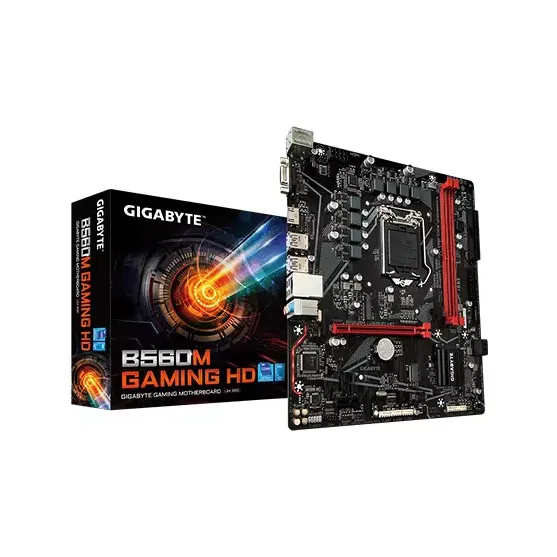

Unlock Unbeatable Performance with the GIGABYTE B560M GAMING HD
Designed specifically for gamers and content creators, the GIGABYTE B560M GAMING HD motherboard is engineered to deliver exceptional performance, rock-solid stability, and sleek aesthetics. Built on the latest Intel B560 Express Chipset, this Micro ATX motherboard supports 11th and 10th Gen Intel Core Series Processors, empowering users to push the boundaries of their creative endeavors.
Key Technical Features
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs
- Shielded Memory Routing for Better Memory Overclocking
- Exclusive 8118 Gaming LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Advanced Technologies
The GIGABYTE B560M GAMING HD motherboard boasts a range of innovative features that elevate the gaming and content creation experience. These include:
GIGABYTE Exclusive Technologies
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Part ID: #CAN-01717
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
Gigabyte B560M GAMING HD 10th & 11th GEN MICRO ATX Motherboard
|
In Stock | 10,500 | 3 hours ago | |
|
Sell Tech
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Creatus Computer
GIGABYTE B560M GAMING HD Intel 10th and 11th Gen mATX Motherboard
|
Check Stock | 10,100 | 4 hours ago | |
|
PC House
Gigabyte B560M GAMING HD Intel 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 10,490 | 4 hours ago | |
|
TechLand BD
Gigabyte B560M Gaming HD 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 10,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbit/100 Mbit)
USB
Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory
11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel B560 Express Chipset
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 2.0 version and HDCP 2.3.
Warranty
03 Years
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
Supported CPU
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors
External I/O Ports
1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
