Product Description

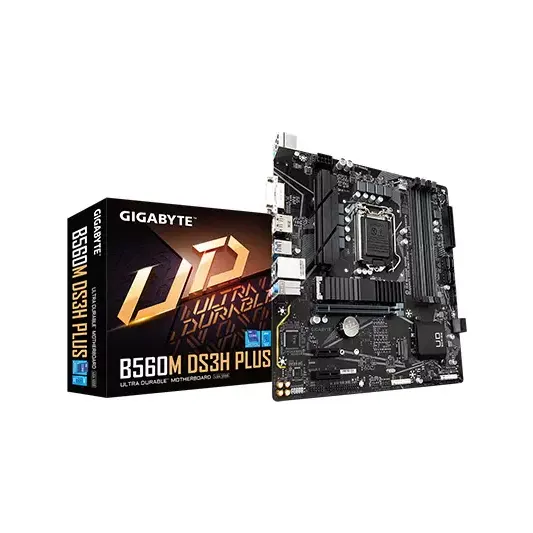

Unlock Unmatched Performance with the GIGABYTE B560M DS3H PLUS Motherboard
Designed for gamers and content creators seeking to push the limits of their systems, the GIGABYTE B560M DS3H PLUS Motherboard offers unparalleled performance, flexibility, and customization options. With its advanced features and robust power delivery system, this motherboard is the perfect choice for those who demand the best.
Key Features and Benefits
- Supports 10th and 11th Gen Intel processors, with up to 128GB of DDR4 RAM and four dual-channel DIMM slots
- Multiple storage options, including six SATA III ports, two PCIe NVMe solid-state drives, and an M.2 drive
- Advanced power delivery system with direct 6+2 Phase Digital VRM Controller and Low RDS(on) MOSFETs
- PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and USB 3.2 Gen 1 and USB 2.0 ports for expanded connectivity and flexibility
- Gigabit Ethernet port for fast and reliable networking
Advanced Technologies and Features
XMP 4600+ and Enhanced Audio
The GIGABYTE B560M DS3H PLUS Motherboard takes advantage of XMP 4600+ technology to unlock enhanced memory performance, while high-end audio capacitors deliver crisp and clear sound. Audio Noise Guard separates the board's sensitive audio components from noise pollution at the PCB level, ensuring a clean and immersive audio experience.
Smart Fan 6 and RGB Fusion Lighting
Smart Fan 6 provides custom cooling with various controls, headers, and sensors to maintain optimal system performance while keeping the system cool and quiet. Additionally, the motherboard features RGB Fusion Lighting, which can be customized using the free RGB Fusion 2.0 Software and synchronized with internal components and peripherals for a unique look.
Part ID: #CAN-01635
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
Gigabyte B560M DS3H PLUS DDR4 Motherboard
|
In Stock | 13,200 | 4 hours ago | |
|
Creatus Computer
GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD
|
Check Stock | 13,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x port
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
Slots
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Chipset
Intel® B560 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Warranty
3 Years
Dimension
24.4cm x 24.4cm
Form Factor
Micro ATX
Supported CPU
LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Other Features
I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
Special Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Software Features
Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility
Supported Storage
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
External I/O Ports
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Part ID: #CAN-01635
Last Updated: 1 month ago
