Product Description

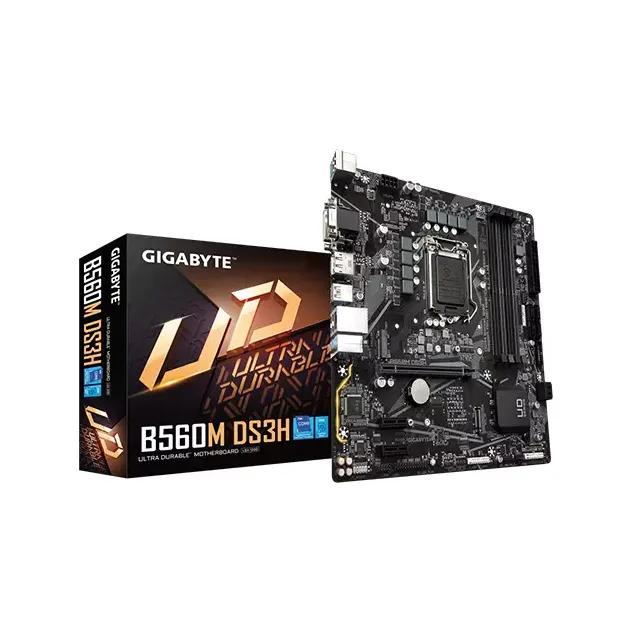

Gigabyte B560M DS3H Motherboard: Unleash Your Gaming Potential
Designed for gamers and PC enthusiasts, the Gigabyte B560M DS3H motherboard is the perfect choice for those seeking a high-performance platform to power their next-generation Intel Core processors. With its robust feature set and exceptional build quality, this motherboard delivers unparalleled gaming and content creation experiences.
Key Features and Benefits
- Supports 11th and 10th Gen Intel Core processors for exceptional performance and power efficiency
- Dual channel non-ECC unbuffered DDR4 memory with 4 DIMMs for up to 128 GB of system memory
- 6+2 phases digital VRM solution with low RDS(on) MOSFETs for stable power delivery
- Dual ultra-fast NVMe PCIe 4.0/X4 M.2 slots for blazing-fast storage
- Realtek GbE LAN chip with bandwidth management for reliable network connectivity
- High-quality audio capacitors and audio noise guard with LED trace path lighting for immersive audio experiences
Exclusive Technologies and Features
Smart Fan 6 and RGB FUSION 2.0
The Gigabyte B560M DS3H motherboard features a comprehensive cooling system with multiple temperature sensors and hybrid fan headers. Additionally, it supports addressable LED and RGB LED strips through the RGB FUSION 2.0 system, allowing for customizable lighting effects and ambient illumination.
Other Notable Features
- Support for up to 3 displays through the D-Sub, DVI-D, DisplayPort, and HDMI ports
- USB 3.2 Gen 1 Type-C port for fast and versatile connections
- Q-Flash Plus update BIOS without installing the CPU, memory, and graphics card
- Trusted Platform Module (TPM) header for enhanced security
Part ID: #CAN-01739
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte B560M DS3H Intel LGA 1200 ATX MOTHERBOARD
|
Check Stock | Call for Price | 5 hours ago | |
|
TechLand BD
Gigabyte B560M DS3H Intel LGA 1200 ATX MOTHERBOARD
|
Check Stock | 10,800 | 5 hours ago | |
|
Nexus Computer
Gigabyte B560M DS3H INTEL LGA 1200 Micro ATX Motherboard
|
Check Stock | 12,500 | 4 hours ago | |
|
Binary Logic
Gigabyte B560M DS3H Motherboard
|
Check Stock | 13,200 | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® GbE LAN chip (1000/100 Mbit)
USB
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel B560 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Warranty
03 Years
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
External I/O Ports
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
