Product Description

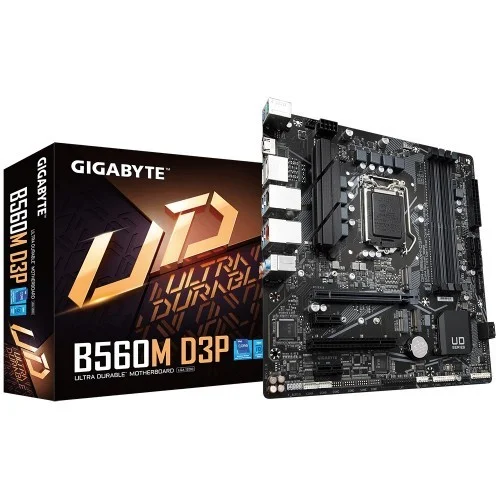

Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
This motherboard is specifically designed for PC enthusiasts and professionals who demand high-performance and reliability from their systems. With its robust feature set and compatibility with 11th and 10th Gen Intel Core processors, this motherboard is the perfect choice for building a powerful gaming PC or a high-end workstation.
Key Features and Benefits
- Supports 11th and 10th Gen Intel Core processors for exceptional performance and power efficiency
- 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory for smooth multitasking and gaming
- 2.5GbE LAN with bandwidth management for fast and reliable network connectivity
- Supports dual ultra-fast NVMe PCIe 4.0/3.0 x4 M.2 SSDs for lightning-fast storage and loading times
- RGB Fusion 2.0 with multi-zone addressable LED light show design for customizable lighting effects
Proprietary Technologies and Features
Ultra Durable Design - This motherboard features a robust design with high-quality components and a fully covered thermal design for better heat dissipation and improved system stability.
APP Center and Q-Flash - With the APP Center, you can easily manage and optimize your system settings, while Q-Flash allows you to update your BIOS without installing the CPU, memory, and graphics card.
Smart Fan 6 and RGB Fusion 2.0 - This motherboard features advanced fan control and customizable lighting effects, allowing you to create a unique and immersive gaming experience.
Part ID: #CAN-02017
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset
Intel B560 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2) (The PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3 /Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 2 x DisplayPorts, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Display Port (s)
2 x Display Ports, supporting a maximum resolution of 4096 x 2304 @60 Hz
USB (s)
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 2 x USB 2.0/1.1 ports available through the internal USB header
LAN Port (s)
Intel GbE LAN chip (1 Gbit/ 100 Mbit) (LAN1) Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/100 Mbit) (LAN2)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 2 x serial port headers parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty
3 year
Others
Special Features
Support for APP Center @BIOS @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
