Product Description

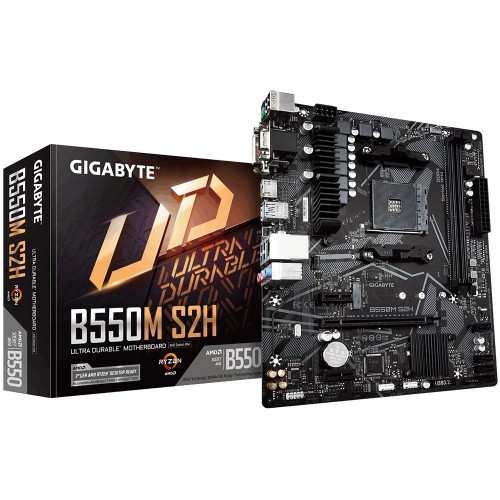

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Whether you're a seasoned gamer or a content creator, the Gigabyte B550M S2H is the perfect choice for anyone looking to build a powerful and efficient system. With its robust feature set and exceptional performance, this motherboard is designed to deliver unparalleled gaming and productivity experiences.
Key Features and Performance Highlights
- Supports AMD Ryzen 5000/4000G Series and Ryzen 3rd Generation Processors
- PCIe 4.0 x16 slot for exceptional graphics performance
- Dual Channel DDR4 Memory Technology with support for up to 64 GB of memory
- Realtek GbE LAN chip for fast and reliable networking
- Support for up to 3 displays at the same time
- High-quality audio capacitors and audio noise guard for exceptional sound quality
Proprietary Technologies and Innovations
Smart Fan 5 and RGB Fusion 2.0
The Gigabyte B550M S2H features a range of innovative technologies designed to enhance your gaming and productivity experience. Smart Fan 5 allows you to interchange fan headers and customize fan settings for optimal performance and silence. Meanwhile, RGB Fusion 2.0 offers advanced lighting control and support for up to 300 LED lights, giving you the freedom to create a truly unique and immersive experience.
Additional Features and Benefits
The Gigabyte B550M S2H also features a range of other innovative technologies and benefits, including:
- Support for APP Center @BIOS, EasyTune, and other advanced software features
- Q-Flash Plus for easy BIOS updates
- Anti-Sulfur Design for improved component reliability
- Support for Windows 10 64-bit
Part ID: #CAN-01233
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
In Stock | 10,000 | 4 hours ago | |
|
Computer Village
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
In Stock | 10,500 | 4 hours ago | |
|
Creatus Computer
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Sell Tech
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
TechLand BD
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
|
Check Stock | 10,000 | 4 hours ago | |
|
PC House
GIGABYTE B550M S2H AMD MOTHERBOARD
|
Check Stock | 13,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset
AMD B550
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI
1 x PCI Express x16 slot, integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated into the Chipset: Supporting PCIe 3.0 x1 mode
M.2 Socket
1 x M.2 connector, integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
2 x DDR4 DIMM
Supported Memory
3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB
Graphics
Graphics
Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI-D (s)
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s)
Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty
03 years
Key Features
Model
Gigabyte B550M S2H
Part ID: #CAN-01233
Last Updated: 1 month ago
