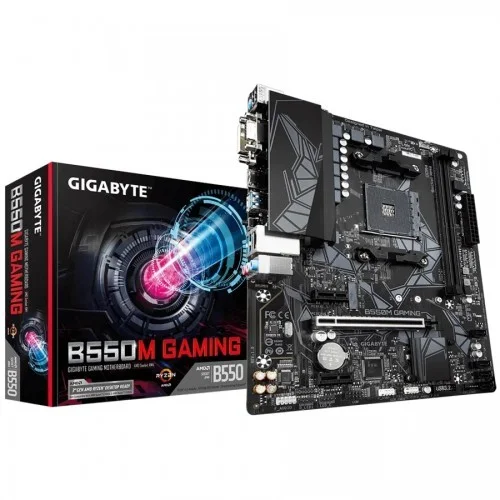

Gigabyte B550M GAMING AM4 Micro-ATX Motherboard

Product Description

Gaming Powerhouse: Unleash the Full Potential of Your AMD Ryzen 5000 Series CPU

Are you a gamer, content creator, or PC enthusiast looking for a reliable and high-performance motherboard to power your system? Look no further than the Gigabyte B550M GAMING AM4 Micro-ATX Motherboard, designed to deliver exceptional gaming performance, stunning visuals, and seamless multitasking with the latest AMD Ryzen 5000 Series CPUs.

Key Features and Benefits
  • Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
  • 4 x DIMM slots with DDR4 memory support up to 128GB (32 GB single DIMM capacity)
  • 1 x PCI Express x16 slot with PCIe 4.0 x16 mode support
  • 1 x M.2 connector with PCIe 4.0 x4/x2 SSD support
  • Realtek GbE LAN chip with 1000 Mbit/ 100 Mbit support
  • RGB Fusion 2.0 with Addressable LEDs for customizable lighting effects
Exclusive Technologies and Performance Enhancements

The Gigabyte B550M GAMING AM4 Micro-ATX Motherboard features several proprietary technologies that enhance performance, efficiency, and user experience. StoreMI technology accelerates traditional storage devices to reduce boot times and enhance overall system performance. Additionally, the motherboard's 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design provides incredible precision in delivering power to the system's most power-hungry components. The Realtek 8118 Gaming LAN chip also ensures a smooth and lag-free online gaming experience with automatic bandwidth allocation.

Part ID: #CAN-02015 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Gigabyte B550M GAMING AM4 Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now
PC House Gigabyte B550M GAMING AM4 Micro-ATX Motherboard
In Stock Call for Price 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm

Expansion Slots

PCI 1 x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
M.2 Socket 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

Memory

Type DDR4
Slots 4 x DIMM slots
Supported Memory AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules,Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules,Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128GB (32 GB single DIMM capacity)

Graphics

Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/ 100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector,1 x CPU fan header,1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header,1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Warranty Information

Manufacturing Warranty 03 Years

Others

Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus,Support for Q-Flash,Support for Xpress Install
