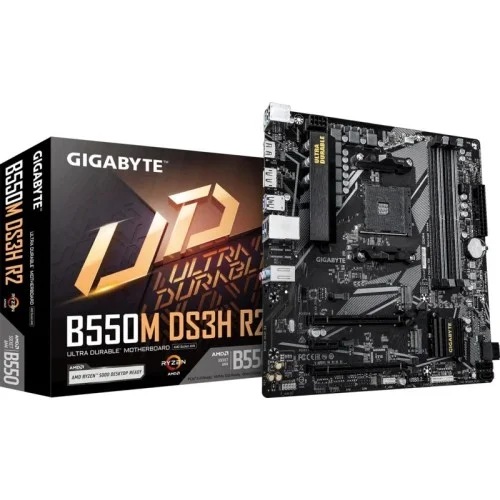

GIGABYTE B550M DS3H R2 Motherboard

Status
In Stock
2 stores
Lowest 13,600 BDT
Price Range 13,600 to 15,500 BDT Save 12%
GIGABYTE B550M DS3H R2 Motherboard

Product Description

Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **13,600 ৳**, with active inventory listings tracked from PCB Store, Creatus Computer.
Part ID: #CAN-10089 Last Updated: 1 week ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
PCB Store GIGABYTE B550M DS3H R2 mATX AM4 Motherboard
In Stock 13,600 4 hours ago
Creatus Computer GIGABYTE B550M DS3H R2 Motherboard
In Stock 15,500 4 hours ago

Historical Pricing Trend

Product Specifications

Key Features

Color Black
Connectors 4 x SATA 6Gb/s, 2 x M.2 Socket 3, PCIe slots, USB, fan, RGB/ARGB and front-panel connectors

Basic Information

Supported CPU AMD Socket AM4; AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 G-Series, Ryzen 3000 Series Processors
Chipset AMD B550
BIOS 128 Mbit flash, AMI UEFI BIOS; Q-Flash Plus; Q-Flash
Form Factor Micro ATX, 24.4 x 24.4 cm
Audio Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 (PCIe 4.0/3.0 depending on CPU), 1 x PCI Express x16 running at x4, 1 x PCI Express x1
M.2 Socket 2 x M.2 Socket 3, M key, type 2280

Memory

Slots 1 x PCIe x16, 1 x PCIe x16 (x4), 1 x PCIe x1, 4 x DDR4 DIMM
Supported Memory DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s; Dual Channel; ECC/Non-ECC Un-buffered DIMM; XMP
Maximum Memory Up to 128GB

Graphics

Graphics Integrated AMD Radeon Graphics support with compatible Ryzen processors

Connector & Ports

HDMI 1 x HDMI, up to 4096 x 2160 @ 60Hz, HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4, up to 5120 x 2880 @ 60Hz
USB (s) 4 x USB 3.2 Gen 1 rear, 2 x USB 2.0/1.1 rear, internal USB Type-C, 2 x internal USB 3.2 Gen 1, 1 x internal USB 2.0/1.1
Front USB 1 x USB Type-C header with USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header
LAN Port (s) 1 x RJ-45, Realtek GbE LAN, 10/100/1000 Mbps
Wireless Communication module Not included
Supported Storage 2 x M.2 Socket 3, 4 x SATA 6Gb/s
RAID RAID 0, RAID 1 and RAID 10 for NVMe SSD and SATA storage
Audio Realtek ALC1220 CODEC, High Definition Audio, 7.1-channel support
Internal I/O Ports 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 2 x ARGB, 2 x RGB, 2 x M.2, 4 x SATA 6Gb/s, front panel, front audio, USB Type-C, USB 3.2 Gen 1, USB 2.0/1.1, TPM, serial port, Clear CMOS, Q-Flash Plus

Network & Connectivity

WiFi Not included

Others

Special Features Q-Flash Plus, Q-Flash, APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, hardware monitoring
Bundled Software Norton Internet Security (OEM version), LAN bandwidth management software

Warranty Information

Warranty Check seller warranty terms
Part ID: #CAN-10089 Last Updated: 1 week ago
for Reliable AMD PC Builds The GIGABYTE B550M DS3H R2 is a Micro ATX motherboard designed for users who want a dependable AMD AM4 platform for gaming, productivity, content creation, home computing, and everyday workloads. Built around the AMD B550 chipset, it supports a wide range of AMD Ryzen processors, including Ryzen 5000, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 G-Series, and Ryzen 3000 Series processors. For Bangladeshi PC builders, this makes the motherboard a practical option when building or upgrading a capable DDR4-based desktop without moving to a more expensive platform. Strong Memory and Storage Support One of the major advantages of the GIGABYTE B550M DS3H R2 is its four DDR4 DIMM slots, supporting up to 128GB of system memory. It supports dual-channel memory architecture and a wide range of memory speeds, including DDR4 3200 and higher speeds through overclocking. XMP memory support also allows compatible RAM kits to be configured for their rated performance. This flexibility is useful for students, office professionals, gamers, and creators who may start with a modest memory configuration and upgrade later. For storage, the motherboard provides two M.2 connectors along with four SATA 6Gb/s connectors. Depending on the installed Ryzen processor, the primary M.2 slot can support PCIe 4.0 or PCIe 3.0 storage, while the second M.2 connector supports SATA and PCIe 3.0 x2 SSDs. RAID 0, RAID 1, and RAID 10 support is also available for compatible NVMe and SATA storage devices. This gives users practical options for combining fast SSD storage with larger-capacity drives. Gaming, Graphics and Connectivity The GIGABYTE B550M DS3H R2 includes a PCI Express x16 slot for a dedicated graphics card, making it suitable for gaming PCs and performance-oriented builds. Compatible AMD processors with integrated Radeon Graphics can also use the motherboard's HDMI and DisplayPort outputs. DisplayPort supports resolutions up to 5120x2880 at 60Hz, while HDMI supports up to 4096x2160 at 60Hz, depending on the processor. Connectivity is also well suited to everyday Bangladeshi PC users. The board features Realtek Gigabit LAN for wired networking, multiple USB 3.2 Gen 1 ports, USB 2.0 ports, a PS/2 keyboard/mouse port, and three audio jacks. An internal USB Type-C header is available for compatible PC cases. These options make it easier to connect peripherals, external storage, networking equipment, and modern accessories. Useful Features for Long-Term PC Building The Micro ATX 24.4cm x 24.4cm form factor makes the motherboard suitable for compact and standard desktop cases. Hardware monitoring includes voltage, temperature, and fan-speed detection, along with overheating and fan-failure warnings. Fan-speed control can also help users maintain a more comfortable operating environment with compatible fans. For maintenance and upgrades, Q-Flash Plus and Q-Flash provide convenient BIOS update options. RGB Fusion support allows compatible lighting components to be managed, while the board also supports Windows 10 64-bit and Windows 11 64-bit. These features make the GIGABYTE B550M DS3H R2 a balanced choice for users who want a practical AMD desktop platform with room for future upgrades. Who Should Buy the GIGABYTE B550M DS3H R2? This motherboard is a strong fit for Bangladeshi students, home users, office professionals, gamers, freelancers, and content creators building an AM4-based PC. It is especially useful for buyers who already prefer DDR4 memory and want multiple storage options without paying for unnecessary premium features. Creatus offers the GIGABYTE B550M DS3H R2 as an option for buyers looking for a reliable motherboard for a custom PC build. Before purchasing, users should confirm CPU compatibility and memory configuration according to their selected processor. For buyers comparing motherboard price in Bangladesh, the GIGABYTE B550M DS3H R2 offers a useful combination of Ryzen compatibility, four DDR4 slots, dual M.2 connectivity, PCIe expansion, Gigabit LAN, and practical I/O. Creatus can be a convenient choice for customers who want to buy computer components online while checking product specifications before ordering. Frequently Asked Questions 1. What should I check before buying the GIGABYTE B550M DS3H R2 in Bangladesh? Check that your processor uses the AMD AM4 socket and is included in the supported Ryzen processor families. You should also check your RAM type, storage requirements, PC case compatibility, and whether you need integrated graphics output from a compatible Ryzen processor. 2. Does the GIGABYTE B550M DS3H R2 come with warranty? Warranty coverage can vary according to the seller and current stock. Before placing an order, confirm the applicable warranty terms, service conditions, and product authenticity with Creatus so you can purchase with greater confidence. 3. Is this motherboard suitable for gaming and everyday use? Yes. With AMD Ryzen processor support, DDR4 memory, PCI Express x16 graphics support, dual M.2 connectivity, Gigabit LAN, and multiple USB ports, it is suitable for gaming, office work, study, browsing, programming, and many content-creation workloads. For a dedicated gaming PC, pair it with a compatible Ryzen processor, sufficient RAM, and a suitable graphics card...
