Product Description

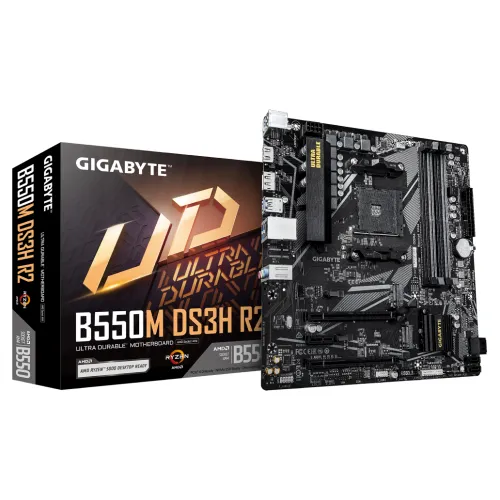

GIGABYTE B550M DS3H R2 mATX AMD Motherboard
This high-performance motherboard is designed for gamers and creators seeking stability and speed. The GIGABYTE B550M DS3H R2 is an ideal choice for those who require a reliable foundation for powerful PC builds.
Key Features and Benefits
- Supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors for exceptional performance and power efficiency.
- Supports up to 128 GB DDR4 memory with high overclocking speeds for seamless multitasking and data-intensive applications.
- Dual M.2 connectors with PCIe 4.0/3.0 support for flexible storage solutions and high-speed data transfer.
- Robust expansion options include a PCIe 4.0 x16 slot for graphics cards and integrated graphics outputs including DisplayPort and HDMI.
- Connectivity includes USB 3.2 Gen 1 ports, USB Type-C header, and Realtek GbE LAN for seamless connectivity and data transfer.
Advanced Technologies and Features
RGB Fusion and Q-Flash Plus - Experience vibrant RGB lighting and easy BIOS updates with Q-Flash Plus, ensuring your system stays up-to-date and visually stunning. Additionally, the motherboard features Smart Backup tools for added security and peace of mind.
System Requirements and Specifications
This motherboard supports Micro ATX form factor, measuring 24.4cm x 24.4cm, and comes with a range of connectors and ports, including HDMI, DisplayPort, and USB 3.2 Gen 1 ports. It also features a 24-pin ATX main power connector and 8-pin ATX 12V power connector for reliable power delivery.
Part ID: #CAN-00995
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors
Chipset
AMD B550
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Supported Memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory
16 GB
Connector & Ports
HDMI
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s)
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
USB (s)
CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
- @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Warranty Information
Manufacturing Warranty
03 years Warranty
Key Features
Model
B550M DS3H R2
Memory
4 x DDR4 DIMM up to 128GB
Ports
1 x DipslayPort, 1 x HDMI
