Product Description
Engineered by Gigabyte, this motherboard is designed for **AM4** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **12,500 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01438
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB
CPU:- 4 x USB 3.2 Gen 1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio - 2/4/5.1/7.1-channel
Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 modeChipset:- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modulesDual-channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Chipset
AMD B550
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Maximum shared memory of 16 GB
Warranty
3 years
Controller
iTE® I/O Controller Chip
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU
AMD Socket AM4, support for:AMD Ryzen 5000 G-Series Processors/AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 3000 Series Processors
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDsAMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
External I/O Ports
2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x DisplayPort (Note)4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button
Part ID: #CAN-01438
Last Updated: 2 days ago

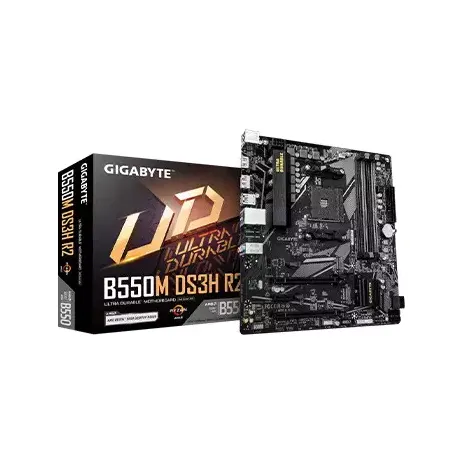

Gigabyte B550M DS3H R2 MotherboardGigabyte B550M DS3H R2 is a reliable and feature-rich Micro ATX motherboard designed for AMD Ryzen processors, offering strong performance, modern connectivity, and long-term upgrade flexibility for gamers, creators, and everyday PC builders.Powerful AMD Ryzen CompatibilityBuilt on the AMD B550 chipset, this motherboard supports a wide range of AMD Socket AM4 processors, including Ryzen 3000, 4000 G-Series, and 5000 Series CPUs. With PCIe 4.0 support (on Ryzen 3000/5000 CPUs), users can enjoy faster graphics and storage performance, making it ideal for modern gaming rigs and productivity systems.High-Speed DDR4 Memory SupportThe board features four DDR4 DIMM slots supporting up to 128GB of dual-channel memory. It supports memory speeds up to DDR4 4733MHz (OC) with XMP profiles, ensuring smooth multitasking, faster load times, and improved overall system responsiveness. Both ECC and non-ECC unbuffered memory modules are supported for added flexibility.Advanced Graphics and Display OutputFor processors with integrated Radeon™ Graphics, the motherboard provides DisplayPort 1.4 and HDMI 2.1 outputs. It supports ultra-high resolutions up to 5K via DisplayPort and 4K at 60Hz via HDMI, along with HDR support, making it suitable for high-resolution monitors and multimedia setups.Storage and Expansion FlexibilityThe Gigabyte B550M DS3H R2 includes two M.2 slots, one supporting PCIe 4.0 (CPU-dependent) and another supporting PCIe 3.0, along with four SATA 6Gb/s ports. RAID 0, 1, and 10 support ensures data protection and performance flexibility. Expansion options include a PCIe x16 slot for GPUs, a PCIe x4 slot, and a PCIe x1 slot for additional cards.Enhanced Audio and NetworkingEquipped with the Realtek ALC1220 audio codec, this motherboard delivers high-definition 7.1-channel audio with DSD support for an immersive sound experience. The Realtek GbE LAN provides stable and fast wired networking for gaming and streaming.Smart Cooling and RGB FeaturesWith multiple fan headers, comprehensive hardware monitoring, and RGB Fusion support, users can maintain optimal cooling while customizing their system’s look with addressable RGB lighting.BIOS and Software SupportThe AMI UEFI BIOS with Q-Flash Plus allows easy BIOS updates without installing a CPU. Support for Windows 10 and Windows 11 ensures long-term compatibility.Buy Now Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard From Ultra TechnologyUpgrade your PC with a stable, high-performance motherboard that balances power, features, and value—available now from Ultra Technology...
