Product Description

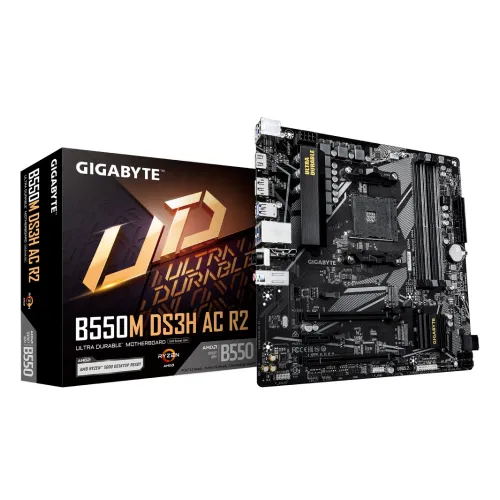

GIGABYTE B550M DS3H AC R2 mATX AMD Motherboard
Unleash Your Gaming Potential
The GIGABYTE B550M DS3H AC R2 mATX AMD Motherboard is a powerhouse solution designed for gamers, content creators, and professionals seeking high-performance computing. With its robust feature set and compact Micro-ATX form factor, this motherboard delivers future-proof performance, strong connectivity, and long-term reliability.
Key Features and Benefits
- Support for AMD Ryzen 5000, 4000, and 3000 Series Processors with AM4 socket, offering PCIe 4.0 compatibility for next-generation graphics cards and ultra-fast NVMe SSDs.
- Dual-Channel DDR4 Memory support up to 128GB for fast data transfer and efficient multitasking.
- Realtek Gigabit LAN and Intel Dual Band 802.11ac Wi-Fi for seamless networking and online connectivity.
- RGB Fusion 2.0 Lighting support for customizable and vibrant lighting effects.
- Q-Flash Plus technology for easy BIOS updates without CPU, RAM, or GPU installed.
Advanced Technologies and Performance Enhancements
Power Delivery and Cooling
The GIGABYTE B550M DS3H AC R2 motherboard features a 5+3 phase digital VRM solution with low RDS(on) MOSFETs, ensuring stable power delivery for gaming and productivity workloads. Additionally, Smart Fan 5 technology with hybrid fan headers keeps systems cool and stable, while Audio Noise Guard and high-quality capacitors deliver clear and immersive audio experiences.
Part ID: #CAN-00996
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors
Chipset
AMD B550
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Supported Memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128 GB
Graphics
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory
16 GB
Connector & Ports
HDMI
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s)
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
USB (s)
CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module
Realtek® Wi-Fi RTL8821CE - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
- @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software
Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty
03 years Warranty
Key Features
Model
B550M DS3H AC R2
Memory
4 x DDR4 DIMM up to 128GB
Ports
1 x DipslayPort, 1 x HDMI
